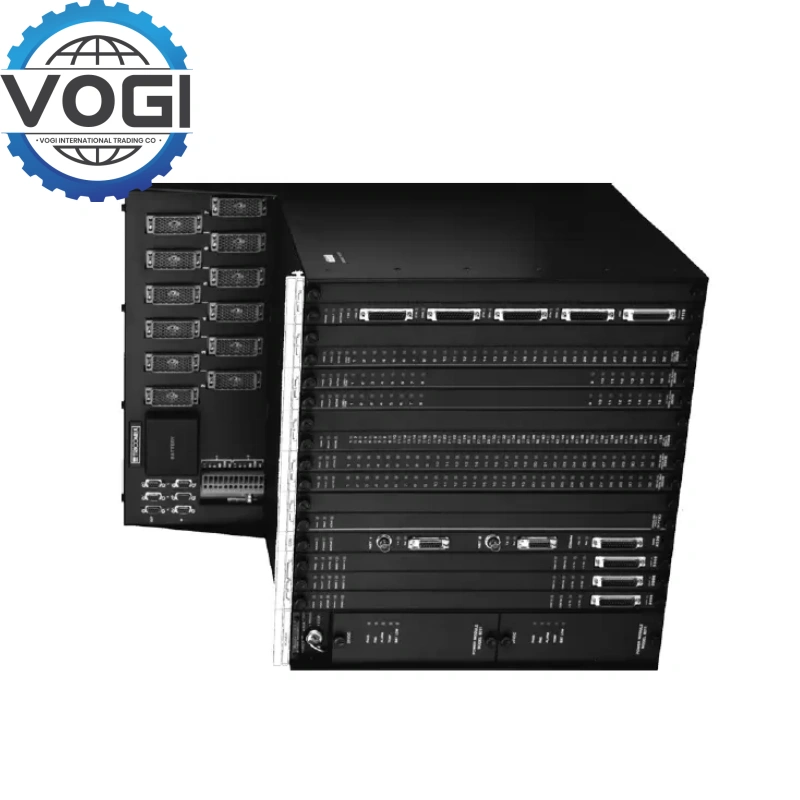

Triconex 7400209-010 Tricon Systems
Technical parameters
VOGI
Analog input: supports 4-20mA, 0-10V or thermocouple/RTD signals
Analog output: supports 4-20mA or 0-10V output
Number of channels: 8 channels or 16 channels are common
Resolution: usually 12-16 bits
Isolation level:
Optical isolation between channels and system side (≥1500V DC)
Supports anti-EMI/RFI interference
Operating temperature: -40°C to +70°C
Protection level: IP20 (
Vibration and shock resistance: meets IEC 60068-2-6 (vibration) and IEC 60068-2-27 (shock) standards
Key FeaturesVOGI
High Precision and Stability
Accurate Signal Processing: Triconex 7400209-010 uses high-resolution ADC/DAC chips to ensure the accuracy of analog signal acquisition and output (error ≤±0.1%). Supports Open/Short Circuit Detection and Over-Range Alarm to improve system reliability.
Industrial Durability
Adaptability to Extreme Environments: Wide temperature design can operate stably in cold or high temperature environments (such as oil platforms and chemical plants). Vibration and shock resistance design, Triconex 7400209-010 is suitable for heavy machinery or vehicle-mounted environments.
Safety and Redundancy Architecture
Triple Redundancy (TMR) Support: Triconex 7400209-010 can be configured in redundant mode to achieve fault tolerance through three-channel independent sampling and voting mechanism.
Real-time Diagnosis: Triconex 7400209-010 has built-in self-test function to monitor the health status of the module in real time (such as power supply fluctuations, signal abnormalities).
Modularity and easy maintenance
Hot-swap support: Triconex 7400209-010 allows online module replacement (system configuration allows), reducing downtime.
Plug and Play: Triconex 7400209-010 can be quickly integrated into existing systems through the Triconex backplane bus (TriBus).
Low power consumption and energy saving
Efficient power management: Typical power consumption ≤5W (single channel active state), reducing the overall energy consumption of the system.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$67 |
|
Southeast Asia |
$20 |
|
South Asia |
$90 |
|
South Africa |
$72 |
|
Europe and USA |
$41 |
|
Russia |
$81 |
ApplicationsVOGI
Process control: refinery flow/pressure monitoring, chemical plant reactor temperature control.
Safety interlock system: emergency shutdown (ESD), gas leak interlock protection.
Energy management: grid voltage/current monitoring, nuclear power cooling system monitoring.
