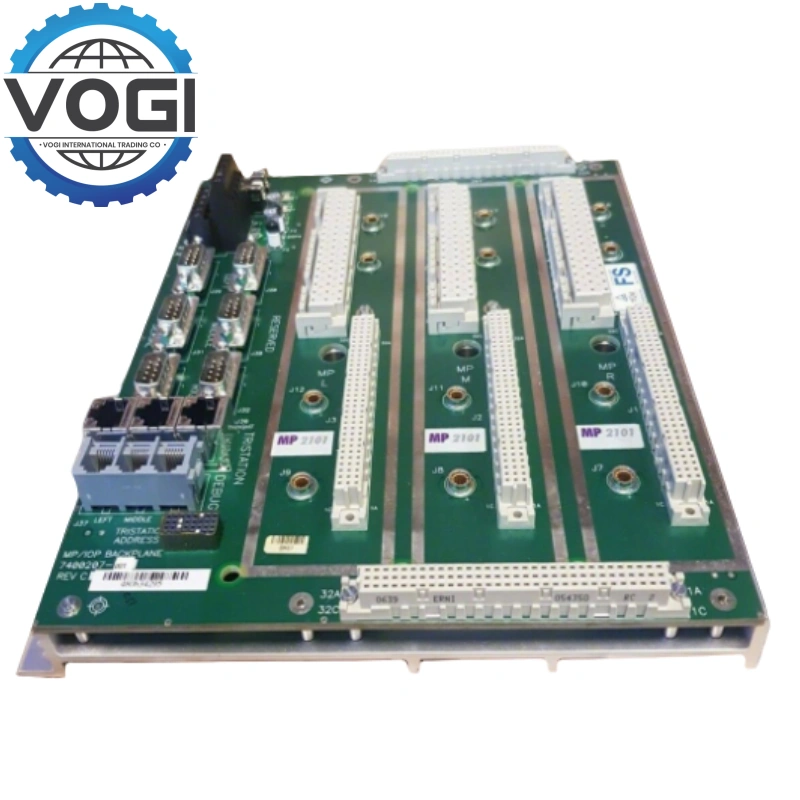

Triconex MP2101 S2 Base Plate

MP2101 S2 is a backplane module, part of Triconex Tricon system and is used to connect other I/O modules or control cards and ensure the communication and power supply.

Mounting type: According to Tricon system standard rack mounting requirements

Input voltage: 24V DC

Power consumption: about 60W

Working temperature: -40℃~+70℃

TMR technology: 3 independent processing channels, adopt a flexible strategy for fault detection and fault tolerance, ensure the system work under single-point failure, comply with SIL 3 safety level certification.

On-Line module replacement: Triconex MP2101 S2 hot swap is supported, system maintenance in the case of without stopping the system running, downtime is shortened.

Triconex MP2101 S2 is ideal for safety-critical applications including emergency shutdown (ESD), fire and gas detection (F&G), and turbine control – as well as high integrity pressure protection (HIPPS).

Triconex MP2101 S2 diagnostic capabilities and the ability to monitor the health of the module in real time quickly and accurately determine the fault isolation.

Triconex MP2101 S2 is modular in design: TiPak allows the connection of up to 16 I/O modules to support the widest range of control requirements for large and complex industrial processes.

Triconex MP2101 S2 supports multiple I/Os types, such as digital IO, analog I/O, etc., and is configurable for a variety of sensors and actuators.

ESD, F&G, compressor control.

Nuclear power plant protection, gas turbine control, power grid island protection.

Aseptic workshop interlocking control, and reactor safety monitoring.

Tunnel ventilation emergency measure, rocket launching table fuel filling safety monitoring.
