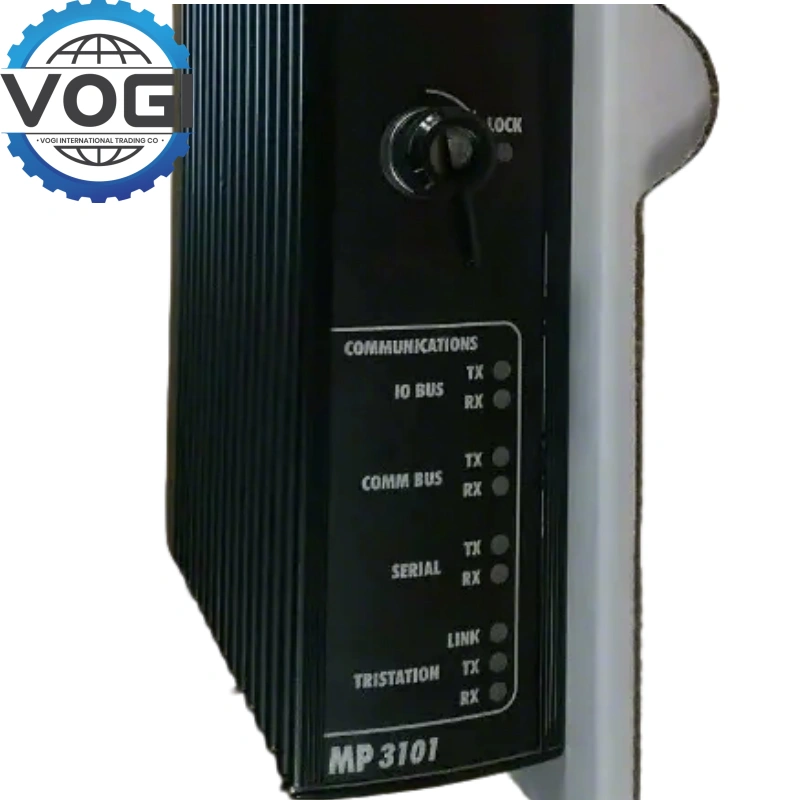

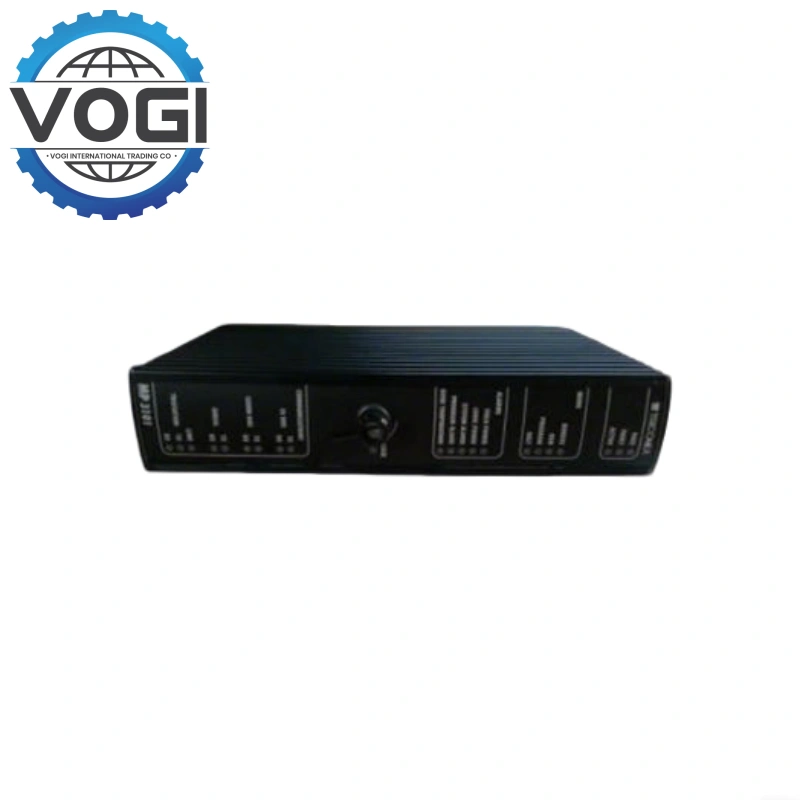

Triconex MP3101 TMR Main Processor

Supported protocols: OPC UA, Modbus TCP/IP, EtherNet/IP and so on.

Backplane communications: Interconnect I/O modules using a high speed (e.g., a Tricon bus), up to 100 Mbps

Module hot swap: On-line swapping of I/O modules without stopping the service

Operating temperature: -40 to 70 degrees C

Certification: IEC 60068, IEC 61000 conform

SIL level: as per TÜV, set up for SIL3

Error rate: hardware error rate as low as 1E-9/h

Input voltage: 24V DC (±10%)

Power: 10-30W typical value

The Triconex MP3101 through TMR architecture to eliminate single point failures and achieve continuous activation of key control systems.

Automatic fault isolation: After the faulted channel is locked out the remaining two still can vote normally.

Triconex MP3101 online diagnostic: CPU and memory monitoring in real time, status of communication, LED / software alarm analysis.

Historical data storage: retain fault records to facilitate post-verification.

MP3101 supports a range of analogue, digital and communication modules for the Triconex.

It is scalable to multiple racks with Triconex MP3101 and ideal for large distributed systems.

Triconex MP3101config tool: TriStation 1131 (IEC 61131-3).

Triconex MP3101 simulation test: the offline test for the logic and online test for the logic was taken in use.

Oil and gas: Subsea pipeline ESD, wellhead safety SCSS.

Chemical: Reactor overpressure protection, interlocking control.

Power management: Gas turbine overspeed protection, nuclear power plant reactor scram system.

Railway transportation: Signal system safety interlocking.
