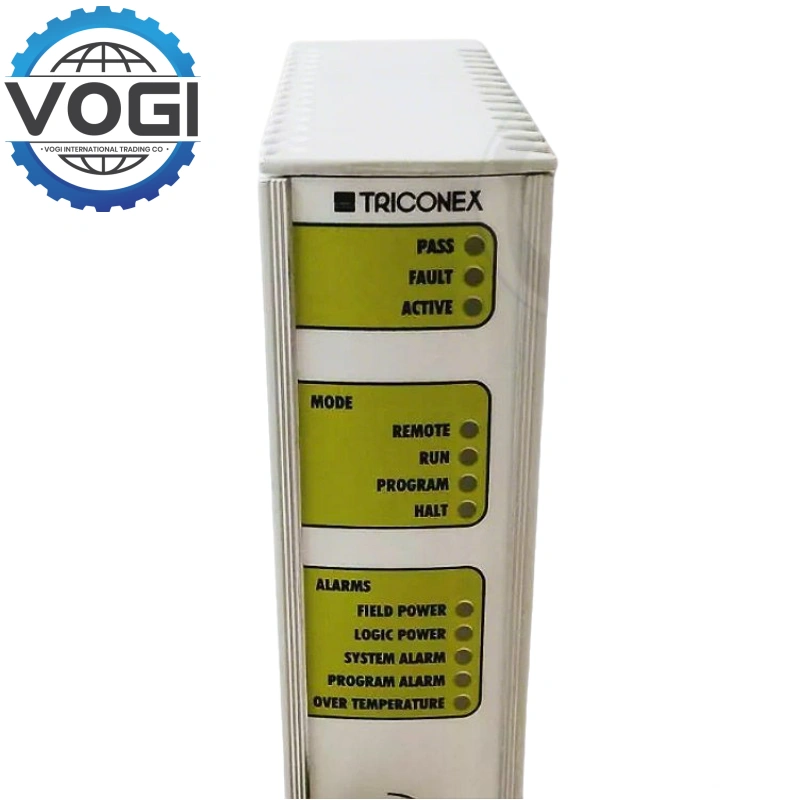

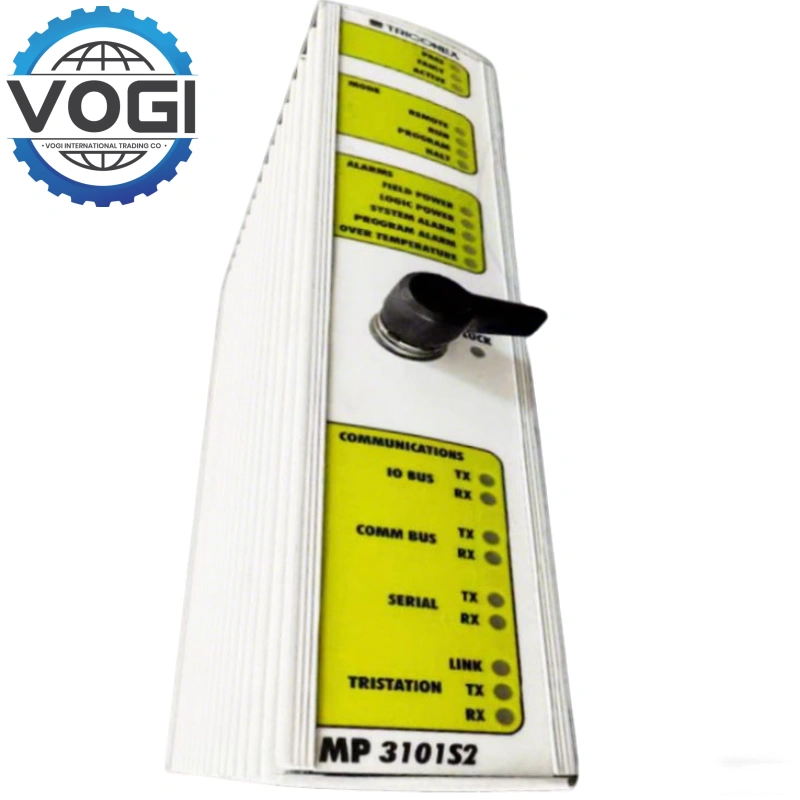

Triconex MP3101S2 Triple Redundant Processor Module

Number of processors: Three independent CPU channels

Internal Storage: Normally expandable non-volatile memory ingrained in the system

A pair of communication interfaces enable Modbus, OPC and TCP/IP to be used.

Operating temperature：-40°C to 70°C

Meet the safety standard of : IEC 61508 IEC 61511 up to SIL3

Power: 24V DC or with AC adapter

The main principle behind the TMR is the same as the DMR, but the number of redundant modules is again increased.

Triconex MP3101S2 employs three separate and synchronized processor channels with a “two out of three” voting process for fault tolerance so that a single-point failure will not result in system failure.

Featuring a long MTBF (mean time between failures), Triconex MP3101S2 installations in critical settings such as nuclear, petrochemical, oil and gas pipeline applications.

Triconex MP3101S2 is hot-swappable module for easy system maintenance or upgrades.

Triconex MP3101S2 checks processor health status on-line, monitors hardware/software failure conditions and creates detailed diagnostic logs.

Triconex MP3101S2 can be easily add I/O modules, while thousands of signal processing points.

Compatible with other Triconex series products (I/O modules, communication modules, etc.). Development and Configuration

The Triconex MP3101S2 is developed with the use of the TriStation software and can be used for control logic configuration according the IEC 6131-3 standard.

Preventing from unauthorized manipulation of configurations, it is in line with the real demand of industrial control network security.

Oil & Gas and Petrochemistry: ESD, Process Safety Control.

Power Generation: Gas turbine control, reactor protection system.

Rail transport: Safety protection control for signal system.

Others: Control of compressor units, F&G and so on.
