VIBRO-METER

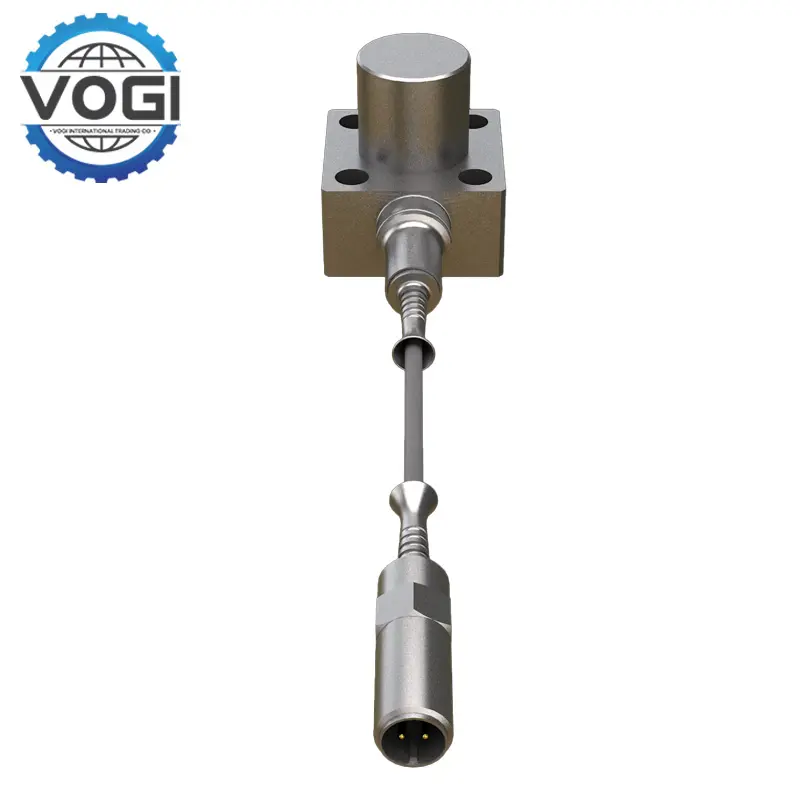

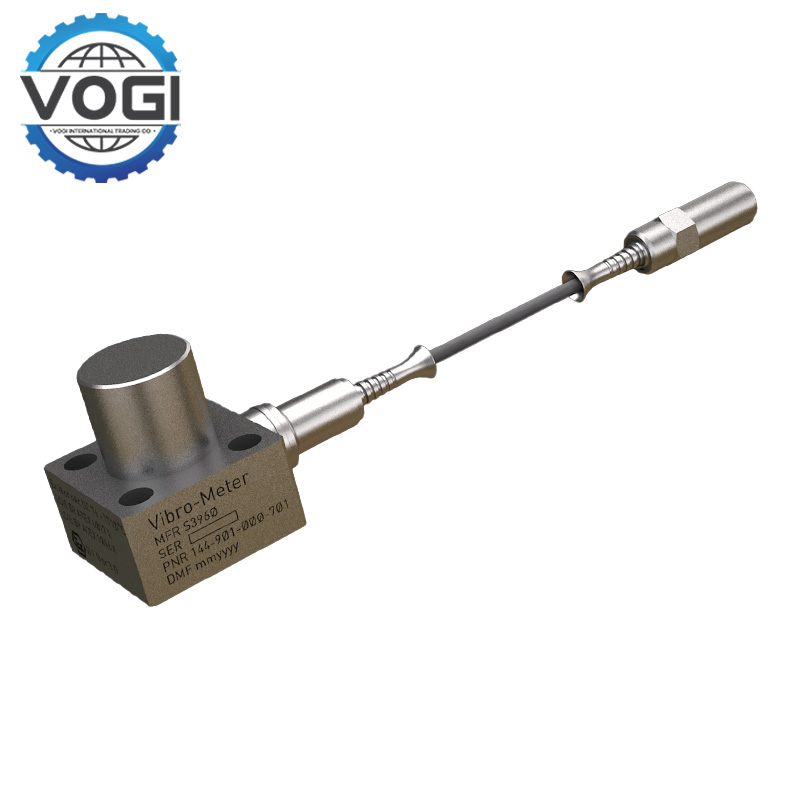

Vibration CA901 144-901-000-212 Piezoelectric Accelerometer
Key SpecificationsVOGI
Operating temperature: -196℃ to 700℃.
Frequency response: 3Hz to 3700Hz.
Sensitivity: 10pc/g (200g), sensitivity tolerance ±5%.
Dynamic measurement range: 0.001g to 200g (0.00981 to 1962m/s²).
Linearity: ±1%.
Transverse sensitivity: <5%.
Resonant frequency: >17kHz.
Key FeaturesVOGI
Extreme outdoor experience: Vibrao CA901 is deployed in extreme environments and can be used for long-term vibration measurement Operating temperature range: -196℃ to 700℃; can be applied in high-temperature environment such as gas turbines and nuclear applications.
Wide frequency response: Vibrao CA901 frequency response range is 3Hz ~ 3700Hz, high-precision measurement of a variety of frequency vibration signals.
High sensitivity: When the sensitivity of 10pc/g (200g) small vibration sensitive to the output charge signal.
Explosive-proof certified: It has been approved for use in potentially explosive environments and are suitable for hazardous locations of flammable and explosive gases and dust.
Integrated cable: Vibrao CA901 can be connected with bidirectional mineral insulated cable for faster installation and needs less user-specified property, improving reliability.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$43 |
|
Southeast Asia |
$31 |
|
South Asia |
$56 |
|
South Africa |
$46 |
|
Europe and USA |
$28 |
|
Russia |
$51 |
APPLICATIONVOGI
Power generation: Vibro CA901 for condition monitoring of electrical power generation equipment (gas turbines, steam turbines, etc.). Through real-time monitoring of vibration conditions, it evaluates the operation state of the equipment, predicts the equipment failure, and provides basis for maintenance decision to guarantee the stability of power production. It is also used for vibration monitoring in special environments such as nuclear power plants.
Petrochemical: In petrochemical production, vibration monitoring is carried out on high-temperature and pressurized reactors, compressing pumps and other equipment. It is conducive to the timely detection of abnormal equipment vibration to avoid production interruptions and safety accidents caused by equipment failure and provide the safety and stability for the chemical production.
Industrial Manufacturing: Vibro CA901 is applied for vibration measurement of different industrial equipment in high-temperature environment, such as high-temperature furnace, heat treatment equipment, etc. Vibration monitoring helps to optimize equipment operating parameters, improve product quality, and reduce equipment maintenance costs.
