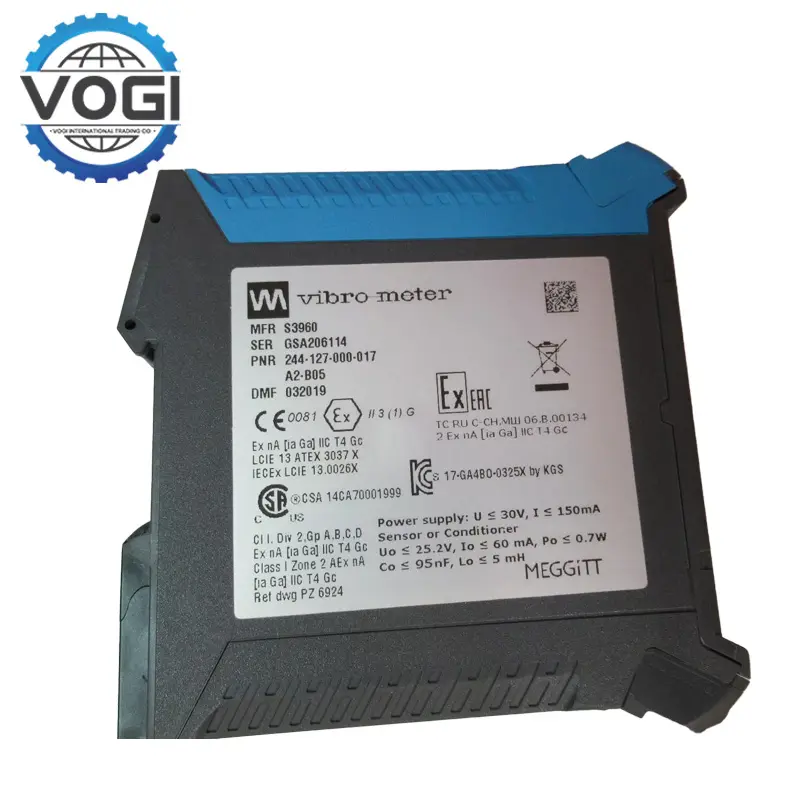

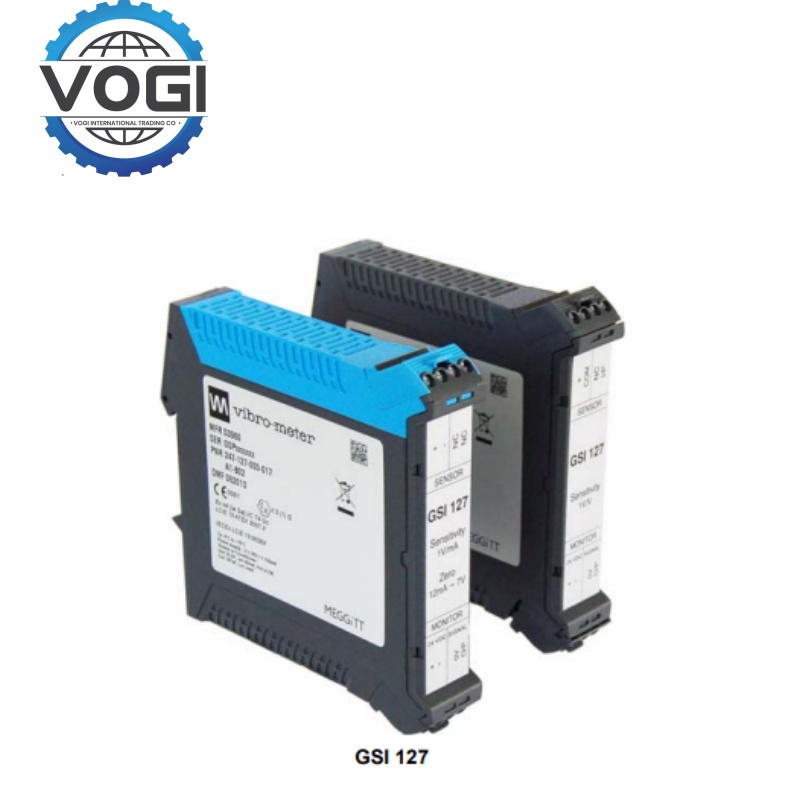

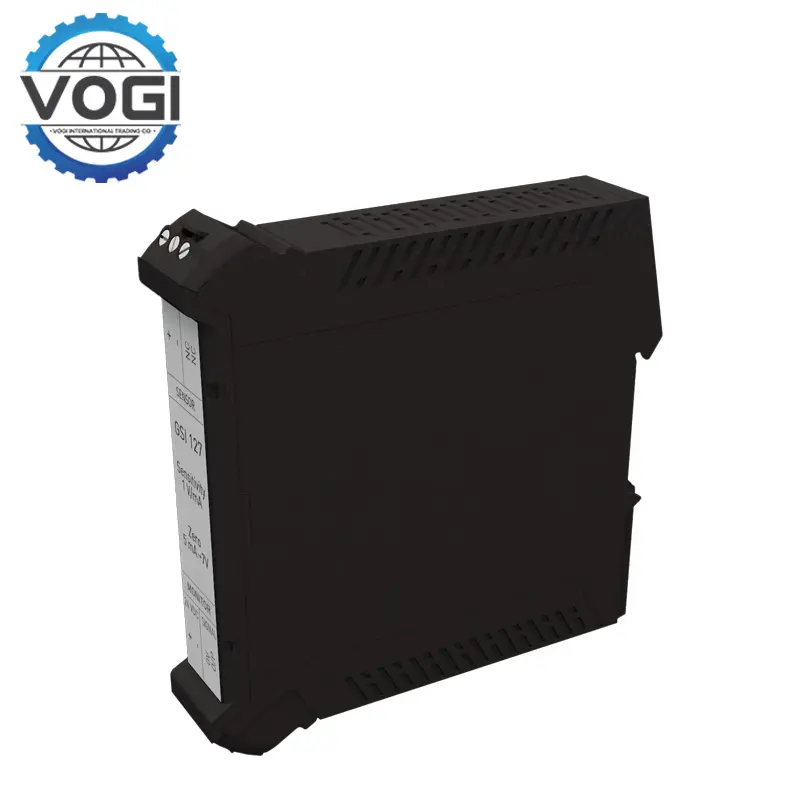

Vibration GSI127 244-127-000-017-A2-B5 Galvanic separation unit

No load on sensor side: ≤80 mA.

20 mA load on sensor side: ≤120 mA.

Operating: 0 to 70°C.

Storage: −20 to +85°C.

Operating: Up to 90%, non-condensing.

Storage: Up to 95%, non-condensing.

Flexible transmission function: Vibro GSI127 244-127-000-017-A2-B02 provides μA to mV transmission function that is suitable for long-distance current signal transmission; it provides V to V transmission function that is suitable for short-distance voltage signal transmission, and meets the requirements of different distance and signal types for transmission.

Configurable Transfer function: Factory configurable transfer function with several sensitivity & output offset voltage options for customization to specific application needs.

Heat Group Explosion-proof and safety certification: Vibro GSI127 244-127-000-017-A2-B02 is certified for use in potentially explosive environments and suitable for hazardous areas; conforms to the SIL 2 level of IEC 61508 standard and is suitable for functional safety-related applications with high safety and reliability.

Petrochemical Industry: Vibro GSI127 244-127-000-017-A2-B5 is used in the production of petrochemicals, where explosive gas, and/or flammable gas, or dust, are potentially hazardous environments. This allows connection of different types of sensor/signal conditioners, e.g. sensors for vibrations, pressures etc. to monitor operating conditions of the chemical process equipment while ensuring that the equipment operates safely for the environment in which the sensors reside and measuring accurately too.

Power industry: It is applied for equipment monitoring systems of electrical machines-generators and transformers. The signals collected by the sensor can be isolated and transmitted to ensure that electrical interference does not affect the measurement results, which meets the high safety, reliability and stability requirements of the power system for equipment.

Aerospace: Vibro GSI127 244-127-000-017-A2-B5 can also be used in aerospace applications, for ground tests and flight tests, and connect different types of sensors, such as accelerometers, pressure sensors, etc., to measure the vibration and pressure of aircraft structures, engines, and other components, which can provide reliable data support for aircraft design, development, and maintenance, and its explosion-proof and safety certifications also ensure its safe use in aerospace application environments.

Industrial automation: In industrial automation production lines, it can be connected to various types of industrial sensors and control systems, to achieve signal isolation and transmission, improve the anti-interference ability and stability of the system, and ensure the normal operation of the production line. As an example, Vibro GSI127 may be used to keep an eye on variables like robotic joint vibration or conveyor belt acceleration.
