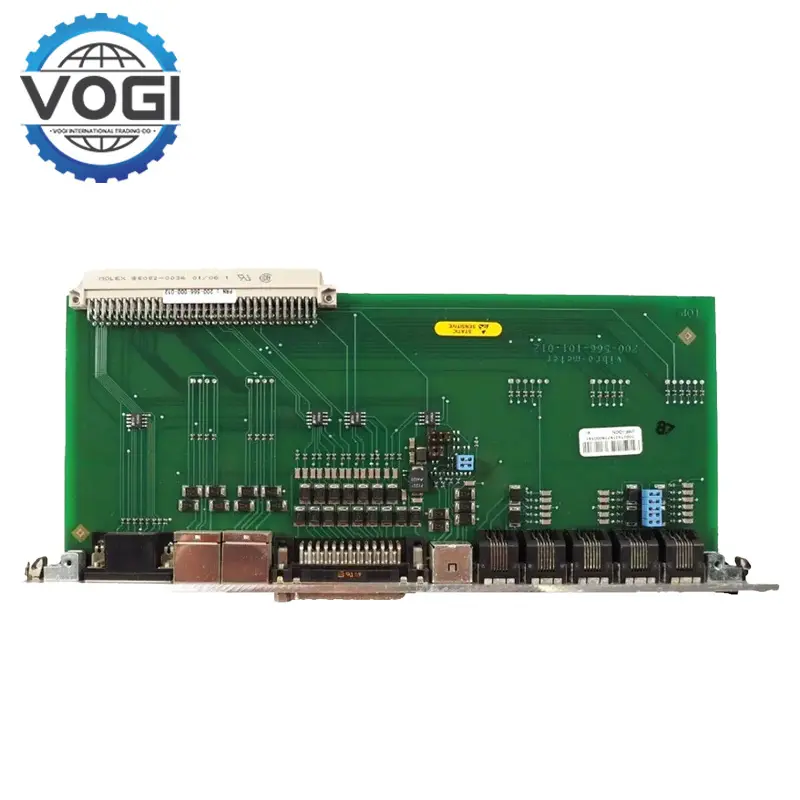

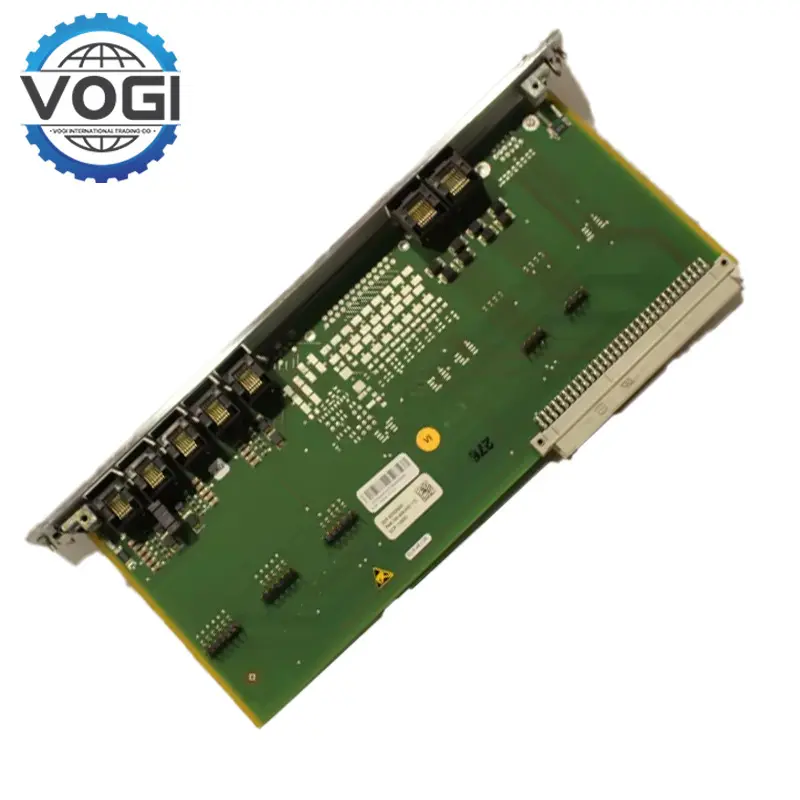

Vibration IOCN 200-566-000-114 Input/Output card

Communication interface: RS-485/Modbus RTU protocol.

Vibration measurement range: 0-25mm/s.

Frequency response: 5Hz to 5kHz.

Input signal type: Supports IEPE sensor input.

Relay output: 4 alarm relays.

Operating temperature: -30°C to +70°C.

Humidity range: ≤95% RH (non-condensing, in line with IEC 60068-2 standard).

Protection level: IP67 (dustproof and waterproof, suitable for harsh industrial environments).

Sampling rate: Up to 50kHz (supports real-time waveform and spectrum analysis).

Accuracy: ±1% FS.

Data Communication and Gateway Capabilities: As an essential component of the VM600 rack-mounted Machinery Protection System (MPS) or Condition Monitoring System (CMS), Vibro IOCN 200-566-000-114 functions as a system controller and data communication gateway. Communication between different components of the system and with external devices such as a DCS or PLC is seamless, providing a mechanism for data exchange and integration.

Measurement and Monitoring:  It uses advanced DSP technology to measure and monitor machinery parameters in real time. It provides programmable wideband and narrowband filters as well as synchronous monitoring of amplitude and phase in sequential tracking mode. With programmable alarm, danger, OK set points and adaptive alarm/danger levels,  Vibro IOCN 200-566-000-114 can very effectively identify machinery anomalies and react accordingly.

Signal Analysis and Display: The front panel BNC connector allows easy analysis of the snubber discharge time signal, while the front panel LEDs display signal status and alarms, giving the user an overview of the equipment's operating status and any potential problems.
Configuration Management: Vibro IOCN 200-566-000-114 connects via Ethernet or RS-232 serial to a computer running the VM600 MPSx software, providing "one-shot" configuration management for the protection cards (MPC4 and AMC8) on the VM600 rack. The simple setup saves time and effort in installing and maintaining the system.

Industrial Machinery: Vibro IOCN 200-566-000-114 tracks the mechanical health of the equipment continually, can detect signs of impending failure or any aberrant vibration, and offers preventative maintenance. They enhance the equipment reliability, assist in boosting the productivity, and cut down the unplanned machine downtime.

Power Generation: It finds use in power generation plants like thermal, hydroelectric, and wind plants to monitor the health of generators, turbines, and other critical machinery. Providing accurate real-time data for parameters like vibration, temperature, etc, on condition-based monitoring, ensures that the power plant can supply electricity in an optimal state safely while reducing failures and improving total generation efficiency.

Manufacturing Plants: Vibro IOCN 200-566-000-114 is applied to monitor the mechanical health of manufacturing process equipment like robotic arms, lines, machining centers, and conveyors. This assists manufacturers in enhancing the quality of fabricated goods while streamlining maintenance schedules and minimizing downtime resulting in increased overall manufacturing efficiency.
