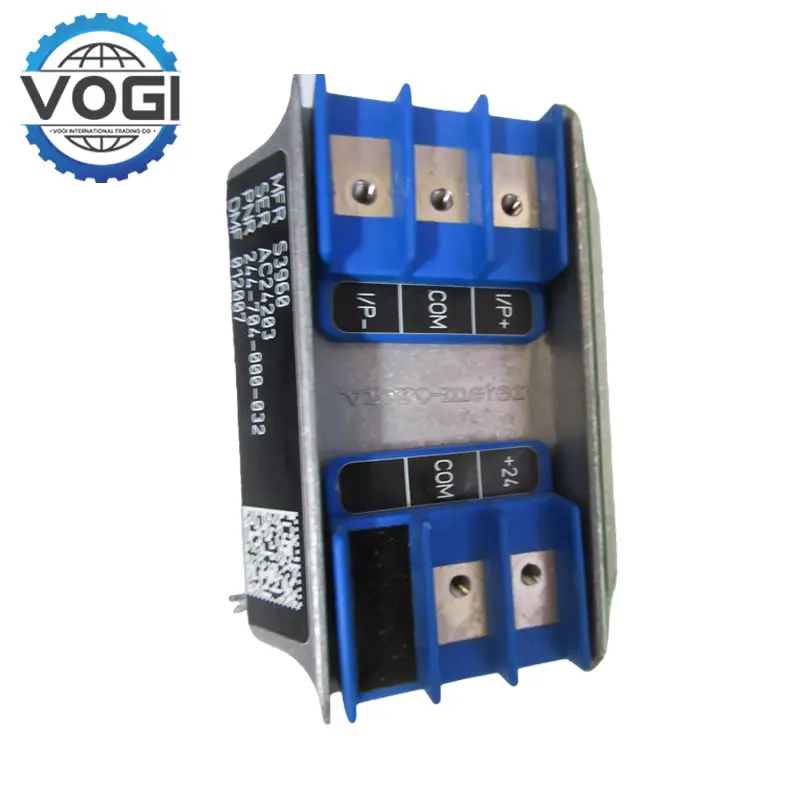

Vibration IPC704 244-704-000-042 Signal conditioner

Communication interface: RS-485/Modbus RTU protocol.

Vibration measurement range: 0-20g peak acceleration.

Frequency response: 2Hz to 10kHz.

Input channels: Support 4 IEPE sensor inputs.

Relay output: 6 programmable alarm relays (contact capacity 5A/250VAC, independent threshold setting).

Operating temperature: -25°C to +65°C.

Humidity range: ≤95% RH.

Protection level: IP66.

Sampling accuracy: 24-bit ADC.

Device capacity: supports up to 32 distributed nodes.

Signal Conditioning:  Vibro IPC704 244-704-000-042 A1-B03-C100-D77-E2-F5000-G0-H0-I0 can be used with accelerometers and dynamic pressure sensors. High-quality, reliable charge converters determine the conversion of the piezoelectric sensor charge signal into the selected output form (usually current or voltage) for subsequent process data analysis.

Wide filtering:  Vibro IPC704 has a wider continuous frequency range (i.e. 0.5 to 20,000 Hz) and adjustable high-pass and low-pass filter configurations, which can accurately capture vibration/pressure signals within any specified frequency and subsequently analyze them. This is very important for identifying and diagnosing various mechanical faults or dynamically monitoring rotating machinery.

Configurable transfer function: Input sensitivity and output sensitivity and units are configured by user selection. It can also be used with an optional integrator to provide a velocity output, expanding its potential use in any measurement and monitoring application.

Output Options: Depending on the application requirements and the operating instrument, Vibro IPC704 244-704-000-042 A1-B03-C100-D77-E2-F5000-G0-H0-I0 offers options for current output (2-wire) for long distance transmission or voltage output (3-wire) for short distance transmission.

Power Generation: Vibro IPC704 244-704-000-042 A1-B03-C100-D77-E2-F5000-G0-H0-I0 monitors turbine, generator and other rotating parts vibration in power plants. By regularly measuring and analyzing vibration signals, operators can identify deleterious mechanical conditions like imbalance, misalignment and bearing wear before catastrophe strikes. Hence, predictive maintenance can be initiated in a timely manner and unplanned downtime or damage can be avoided.

Petrochemical: For the pumping and compression of chemical plants and refineries,  Vibro IPC704 of can withstand seismic stress and machine control. Thus, it enables the safe working of equipment and protection against leakages, explosions as well as any life-threatening incidents, alongside averted loss of lives and environmental damage.

Aerospace: In the aerospace industry, it is used to monitor the vibration dynamics of aircraft engines and landing gear, as well as testing the functionality of other parts during flight tests and operations. The aerospace domain has the stringent requirement to maintain the safety and reliability of the components, thus necessitating, among other things, high fidelity vibration monitoring.

Automotive: Vibro IPC704 244-704-000-042 A1-B03-C100-D77-E2-F5000-G0-H0-I0 can be used in the automotive manufacturing and testing process to monitor vibration on engines, transmissions, and other rotating components during manufacturing and road testing. This contributes to higher quality and reliability in automotive products by calling out and resolving their vibration problems.
