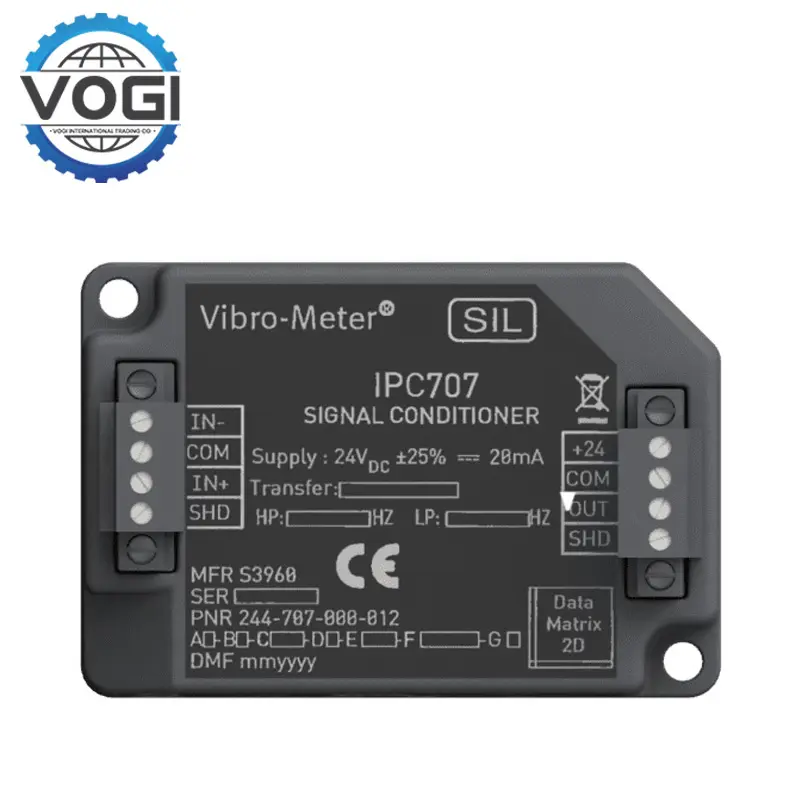

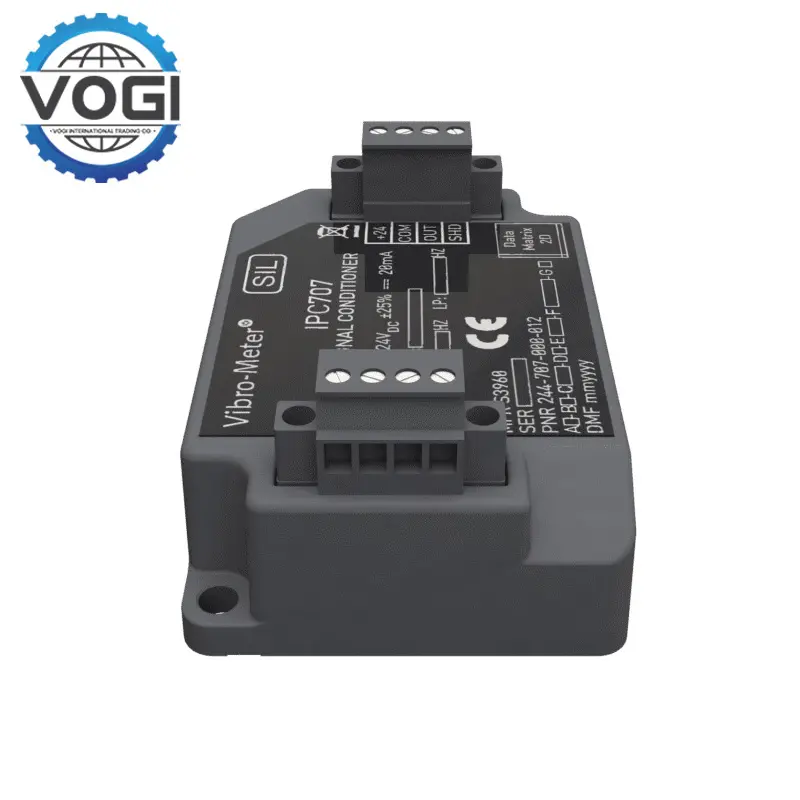

Vibration IPC707 Signal Conditioner

Power input (main power): 24VDC ±15%.

Backup battery: 12V/7Ah lead-acid battery.

Communication interface: RS-485/Modbus RTU protocol.

Vibration measurement range: 0-30mm/s.

Frequency response: 1Hz to 15kHz .

Input channels: 8 IEPE/ICP sensor inputs .

Relay output: 8 programmable alarm relays.

Device capacity: maximum support 128 detection nodes .

Operating temperature: -40°C to +75°C.

Humidity range: ≤95% RH .

Protection level: IP68.

Sampling rate: up to 100kHz.

Accuracy error: ±0.5% FS.

Signal Conditioning: The main function of  Vibro IPC707 IPC707 244-707-000-012 is to condition the signals from the accelerometer (CA) and the dynamic pressure sensor (CP). During this process, the charge signals generated by these piezoelectric sensors are converted into current or voltage signals for easier processing and transmission to other elements in the monitoring system, and better interpretation of the signals through amplification, filtering and bio-intelligence integration: improving signal quality for further analysis and control.

Configurable transfer function: Vibro IPC707 allows the transfer function to be configured for the measurement device, including parameters such as sensitivity and measurement units. This device configuration enables it to operate within the operating range of multiple sensors while meeting measurement performance requirements; this will ensure that different systems have accurate and consistent measurement outputs. In addition, the integrator can be selectively turned on to provide an output in the form of velocity, further expanding the capabilities of the signal conditioner.

Filtering capabilities: The high-pass and low-pass filters of Vibro IPC707 IPC707 244-707-000-012 can be adjusted to allow it to truly filter out unwanted noise and interference in the measurement. This is to improve the signal-to-noise ratio while extracting the fundamental frequency components of interest, thereby more accurately monitoring and diagnosing the condition of the equipment. The filters can be freely adjusted through the transmission gain and input impedance settings, which is actually very flexible in signal processing.

Industrial manufacturing: Equipment status monitoring via Vibro IPC707 IPC707 244-707-000-012. Through accurate vibration analysis, it can perform real-time abnormalities of parts vibration real time monitoring, predict possible faults in advance, effectively prevent sudden failure of equipment, ensure production line stable and efficient operation, and reduce downtime caused by economic losses. In the case of automobile manufacturing plants, it can monitor critical equipment like stamping, welding on all sides.

Transportation: It supports safe transportation. Installed in criticalcomponents like aircraft engines and train bogies, it analyzes vibration data to assess the health of components. For instance, in-flight, it provides real-time feedback for the engine vibration condition, assists the crew to make accurate decisions, and guarantees the flight safety; in the case of the train running, it helps the maintenance personnel to intuit the bogie to reach ensure the safety of rail transportation.

Medical equipment: The Importance of Vibro IPC707 IPC707 244-707-000-012 For instance, the equipment's vibration state can be monitored in large medical imaging equipment to guarantee imaging accuracy during the operation of the equipment. Stable operation of the equipment is an important guarantee for obtaining a clear and accurate imaging effect of the equipment. Therefore, monitoring of the use of various parameters of equipment operation can timely adjust the parameters of the equipment to provide doctors with a better quality of diagnostic imaging basis.
