VIBRO-METER

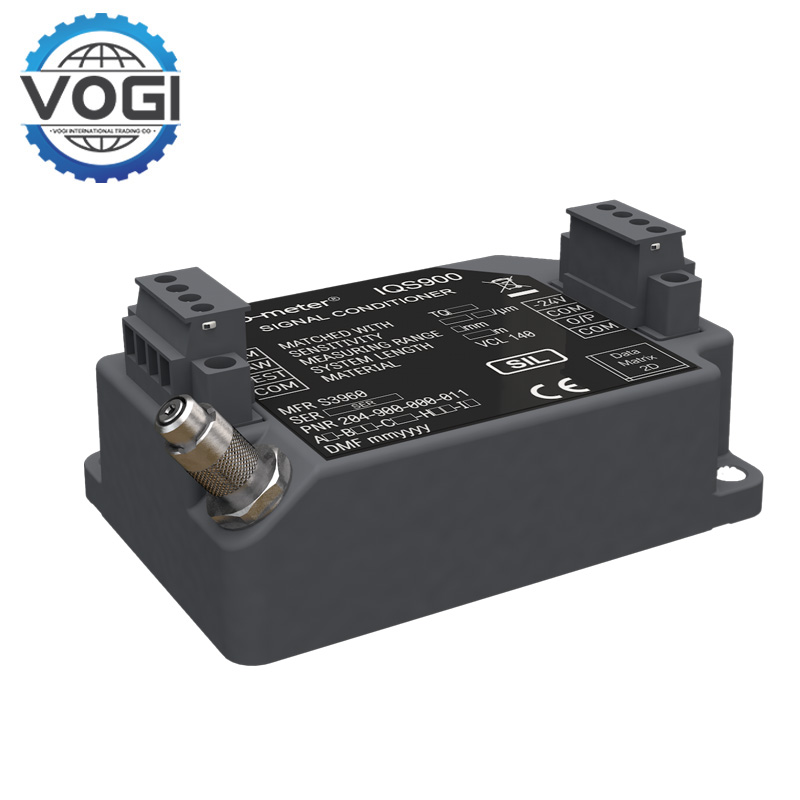

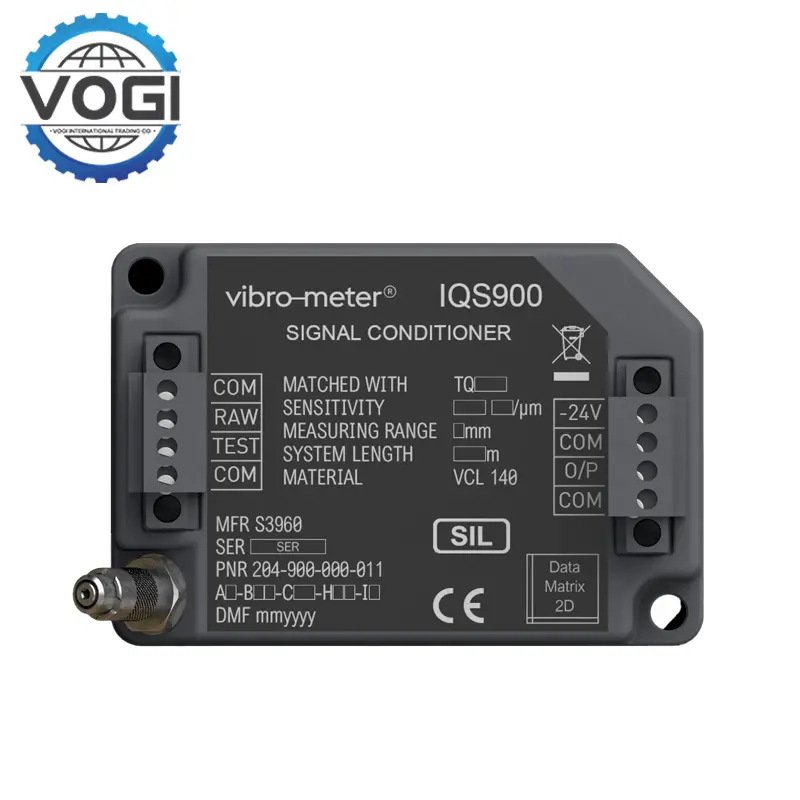

Vibration IQS900 204-900-000-011 signal conditioner
Key SpecificationsVOGI
Channels: 2 independent input channels (expandable in some models)
Probe Types:
Eddy current proximity probes (e.g., TQ4xx series).
IEPE accelerometers (±4 V DC bias).
Voltage input (e.g., from velocity transducers).
Measurement Range:
Proximity probes: 0–2 mm, 0–5 mm, etc.
Accelerometers: ±5 g to ±50 g .
Frequency Response:
DC to 20 kHz (proximity probes).
0.5 Hz to 20 kHz (IEPE inputs).
Analog: 4–20 mA (isolated, per channel).
Voltage: ±10 V (non-isolated, per channel).
Digital: Serial RS-485 (Modbus RTU, optional).
Linearity: ≤ ±0.25% of full scale
Noise Floor: ≤ 30 mV peak-to-peak (proximity inputs)
Operating Temperature: -40°C to +85°C.
Storage Temperature: -55°C to +105°C.
Voltage: 18–30 V DC.
Power Consumption: ≤ 5 W (for 2 channels).
Key FeaturesVOGI
Acoustic emission fusion: Vibro IQS900 is integrated with high-sensitivity acoustic sensors, early cracks and micro-pitting are identified through stress wave analysis (ASW), which can detect faults 30% earlier than traditional vibration monitoring.
Deep feature extraction: based on convolutional neural network (CNN), it automatically identifies nonlinear features such as abnormal sidebands and harmonic clusters in the vibration spectrum, and the diagnostic accuracy is increased to 98%.
Digital twin mapping: built-in equipment physical model library (such as turbines, compressors), combined with real-time data to dynamically calibrate model parameters, and predict the remaining life (RUL) error <5%.
Self-powered design:Vibro IQS900 is integrated energy harvesting module, which can obtain electricity from equipment vibration and work continuously for more than 10 years without external power supply.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$43 |
|
Southeast Asia |
$15 |
|
South Asia |
$44 |
|
South Africa |
$36 |
|
Europe and USA |
$24 |
|
Russia |
$41 |
APPLICATIONVOGI
Full life monitoring of aircraft engines: from ground test (capturing blade flutter) to flight stage (monitoring surge boundary), data is synchronized to the FADEC system in real time, reducing the risk of air parking by 90%.
Satellite momentum wheel health management: Vibro IQS900 monitors micro-vibration spectrum changes on-orbit, predict bearing lubrication failure in combination with thermal control data, and extend satellite life by 2-3 years.
Nuclear main pump status assurance: monitor shaft seal micro-leakage through ultrasonic waves, link emergency cooling system, and avoid LOCA (loss of coolant accident) level risks.
Hydropower plant giant unit: capture blade cracks (<0.1mm) of 200r/min low-speed turbine runner, and guide maintenance cycle optimization.
Pipeline vibration safety warning: Vibro IQS900 identifies pipeline resonance frequency caused by two-phase flow, predict flange fatigue failure, and avoid oil and gas leakage accidents.
Centrifugal compressor anti-surge: calculate surge line offset in real time, dynamically adjust guide vane opening, and improve compressor efficiency by 15%.
Semiconductor wafer fab: monitor subsonic vibration (<20Hz) of lithography machine vacuum pump to ensure nanometer-level exposure accuracy.
High-speed rail gearbox intelligent operation and maintenance: Vibro IQS900 analyzes gear meshing status through order tracking, realize on-demand maintenance, and reduce the life cycle cost by 25%.
