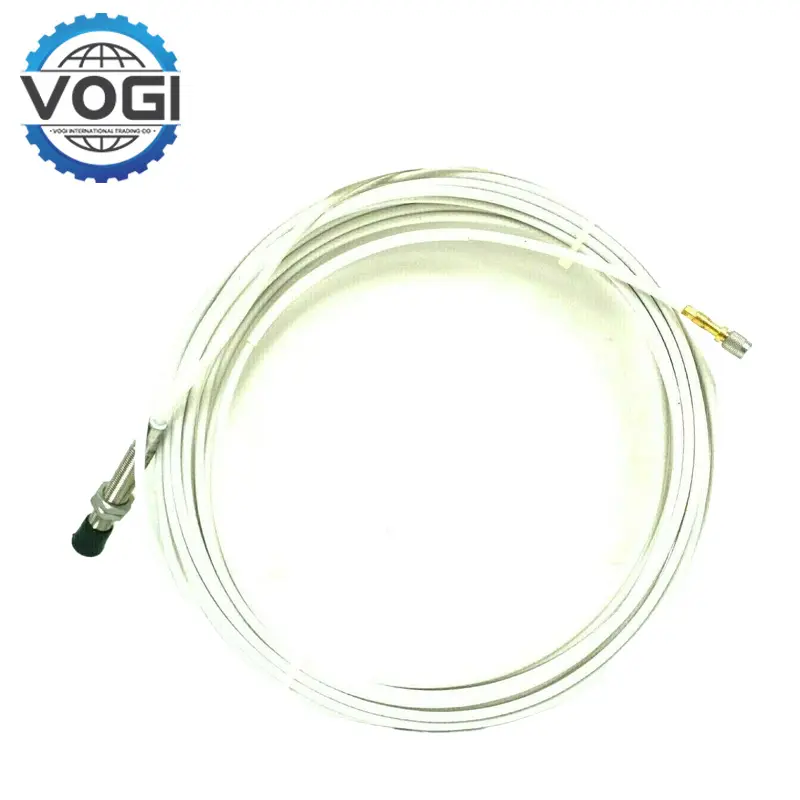

Vibration TQ402 111-402-000-013 proximity transducer
Key SpecificationsVOGI
Temperature ranges:
Transducer : −40 to +180 °C with drift < 5% (operating).
+180 to +220 °C with drift > 5% (short-term survival).
Transducer and cable : −40 to +195 °C if used in an Ex Zone.
Cable, connector and optional protection : −40 to +200 °C.
Protection rating: IP68.
Vibration: 5 g peak between 10 and 500 Hz.
Shock acceleration: 15 g peak (half sine-wave, 11 ms duration).
Key FeaturesVOGI
Wide frequency response range: Vibro TQ402 supports detection from low-frequency mechanical vibration to high-frequency vibration, suitable for different application scenarios.
High-precision monitoring: With high-sensitivity sensors, it is suitable for detecting small vibration changes, suitable for industrial equipment health monitoring or fault diagnosis.
Durability and protective design: Vibro TQ402 housing may be made of metal or industrial-grade plastic, with dustproof, waterproof (IP67 rating) or corrosion-resistant properties, suitable for harsh environments.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$35 |
|
Southeast Asia |
$23 |
|
South Asia |
$45 |
|
South Africa |
$37 |
|
Europe and USA |
$24 |
|
Russia |
$41 |
APPLICATIONVOGI
Industrial Production: Vibro TQ402 is the application in the field of industrial manufacturing equipment, such as vacuum conveying equipment, industrial machine tools, packaging machinery and other vibration monitoring and monitoring. By monitoring the vibration of the equipment in real time during continuous operation, it can detect potential problems, avoid unexpected failures, reduce maintenance costs, and improve production efficiency.
Power Generation: Vibro TQ402 is primarily used for vibration monitoring of turbines and generators in power plants. These devices are crucial to the functioning of power plants. Under normal circumstances, when the equipment removes period, if can find out vibration problem can be avoid major failure, keep generating equipment stable operation, prevent because equipment failure to produce the expensive power failure.
