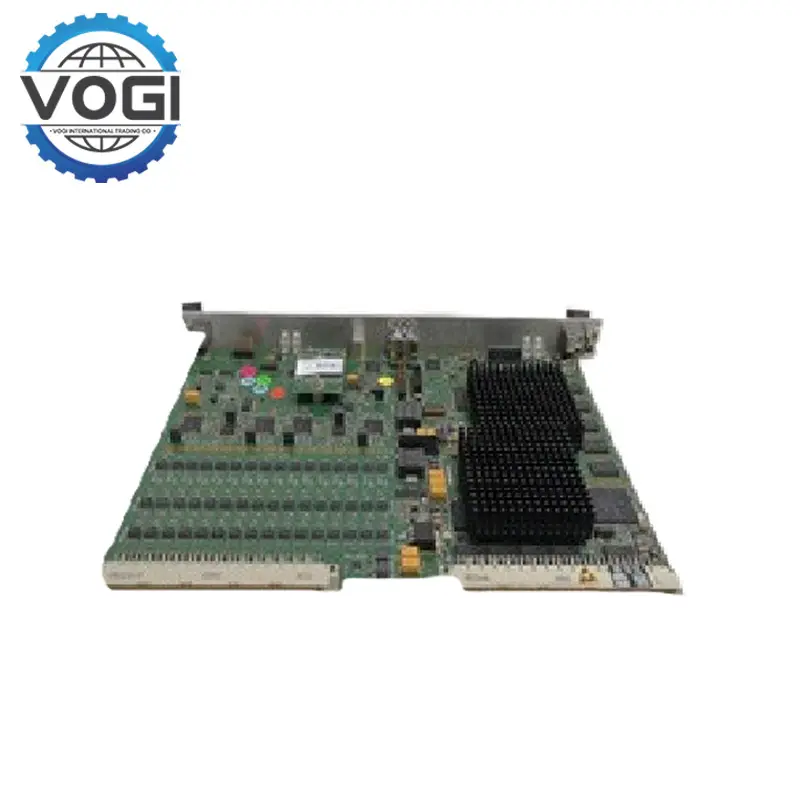

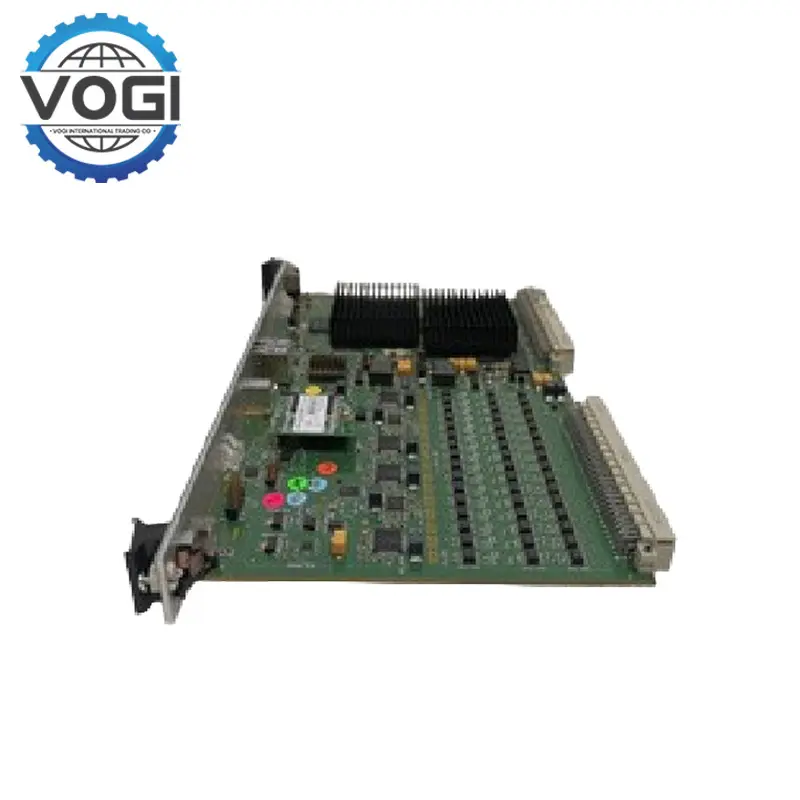

Vibration XMV16 620-001-001-116 Extended monitoring card for vibration

Operating: 0 to 65°C.

Storage: −40 to 85°C.

Operating: 0 to 90% relative humidity (RH), non-condensing.

Storage: 0 to 95% relative humidity (RH), non-condensing.

Maximum sampling rate: 98 kHz.

Dynamic input (voltage): −30 to +30 V (input impedance ≥ 200 kΩ).

Dynamic input (current): −25 to +25 mA.

Versatile Monitoring: Vibro XMV16 620-001-001-116 monitors multiple vibration sources and their respective speeds simultaneously. It acquires real-time data on amplitude, frequency, phase and other parameters, giving an overview of the mechanical condition of the monitored equipment.

High Configuration Flexibility: Each dynamic channel and tachometer channel can be set independently, allowing configuration for each specific monitoring application. This allows the settings to vary for different types of equipment, operating conditions and measurement points, providing accurate and relevant data from the measurement system.

Data Processing and Analysis: Vibro XMV16 can analyze various statistics derived from the vibration data generated by the operation in real time: spectrum analysis, order tracking for identifying trends and anomalies, and diagnosis of possible faults. The processed data is presented in a user-friendly format that is easy for maintenance personnel to understand.

Power generation: Vibro XMV16 620-001-001-116 at power plants is used to monitor vibrations on turbines, generators, and other critical power generation hardware. It enhances balanced and stable operation of generator sets through accurate measurement and analysis of vibrations; preventing incipient destructive failures and optimizing maintenance scheduling while absorbing the impact on production loss.

Automotive: It is used in automotive manufacturing and test facilities to vibrate automotive components (engine, transmission and chassis components) during manufacturing and during testing.

HVAC Systems: Vibro XMV16 is used for health and vibration monitoring of HVAC systems like fans, motors, blowers, etc.
