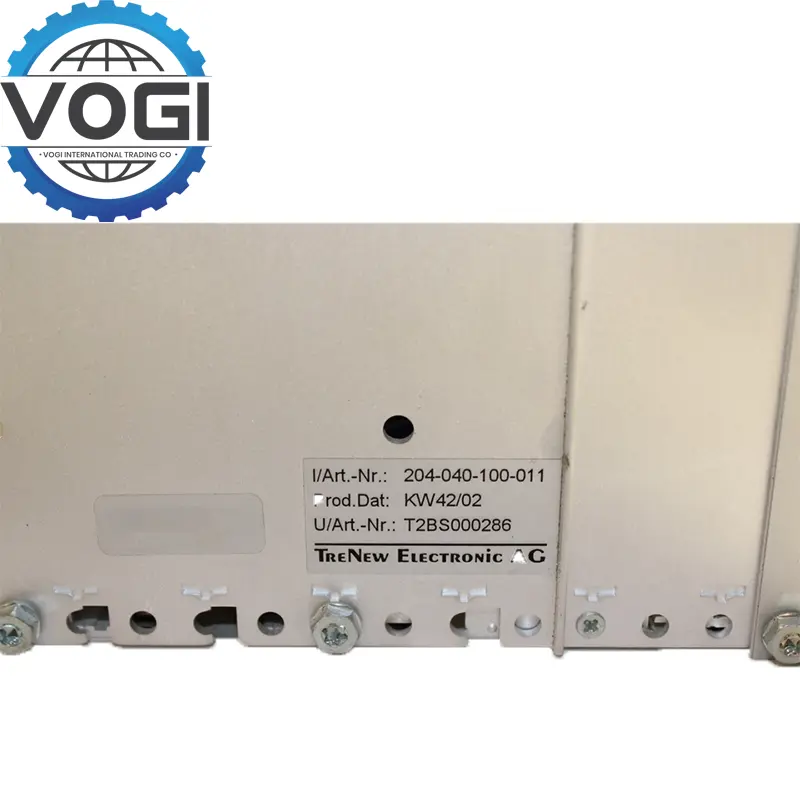

Vibro-Meter ABE040 204-040-100-011 system rack
Technical ParametersVOGI
Form Factor & Slots
19″ wide, 6 U high enclosure
12 card slots on a 0.8 inch pitch backplane
Power Supplies
ABE040 204-040-100-011 Dual redundant 24 V DC inputs (18–36 V DC range)
Internal 5 A fuse per supply input
Power bus distributes to all module slots
Backplane Buses
Raw Bus: Analog signal distribution (0–10 V) for transducer outputs
OC Bus: Digital alarm/trip logic routing
Power Bus: 24 V DC to all modules
Grounding: Front and rear chassis grounding points
Communications
ABE040 204-040-100-011 Built-in Ethernet switch (2 × RJ45 ports) for daisy-chain to VibroSight or higher-level systems
ABE040 204-040-100-011 Optional fiber-optic transceiver card (plug-in slot) for noise-immune, long-reach links
Rear-panel status LEDs for system power, bus health, and network activity
Environmental & Physical
Operating temperature: –10 °C to +55 °C
Humidity: up to 95 % non-condensing
Shock & vibration per IEC 68-2 standards
Key Features
VOGI
Modular Hot-Swap Architecture
Insert or remove any card (power, I/O, protection, condition-monitoring) without shutting down the rack.
Faulty modules can be replaced in-service, minimizing plant downtime.
Redundant DC Power
Dual 24 V DC inputs ensure continued operation on single-supply failure.
Fuse protection isolates faults without affecting other slots.
Integrated Networking
Onboard Ethernet switch supports drop-in connection of VibroSight PCM/CM servers.
Fiber-optic option provides galvanic isolation and EMC immunity for control-room links.
Scalable Slot Count
Twelve slots accommodate combinations of MPC4 protection cards, CMC condition-monitoring cards, IOC I/O modules, tracking filters, and display modules.
Future expansion supported by leaving free slots.
Robust Industrial Design
All-metal chassis with sealed front-panel prevents dust ingress.
Meets industrial shock, vibration, and EMI/EMC requirements for heavy-industry plants.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$155 |
|
Southeast Asia |
$67 |
|
South Asia |
$82 |
|
South Africa |
$155 |
|
Europe and USA |
$93 |
|
Russia |
$155 |
Applications
VOGI
Power-Plant Turbine Protection
ABE040 rack hosts multiple MPC4 cards for fast vibration trip logic, CMC16 cards for trend analysis, and IOC16T for relay outputs; fiber link to control room’s VibroSight server ensures real-time oversight of all units.
Oil & Gas Compressor Train Monitoring
Multiple racks distributed along a compressor row supply local modules to monitor vibration, shaft eccentricity, and gear mesh orders; Ethernet daisy-chain aggregates data to a central hub without additional switches.
Petrochemical Plant Distributed Condition Monitoring
ABE040 enclosures placed at each major machine train combine protection and monitoring cards; central DCS receives alarm/trip contacts via IOC16T and trending data via Ethernet for predictive-maintenance scheduling.
