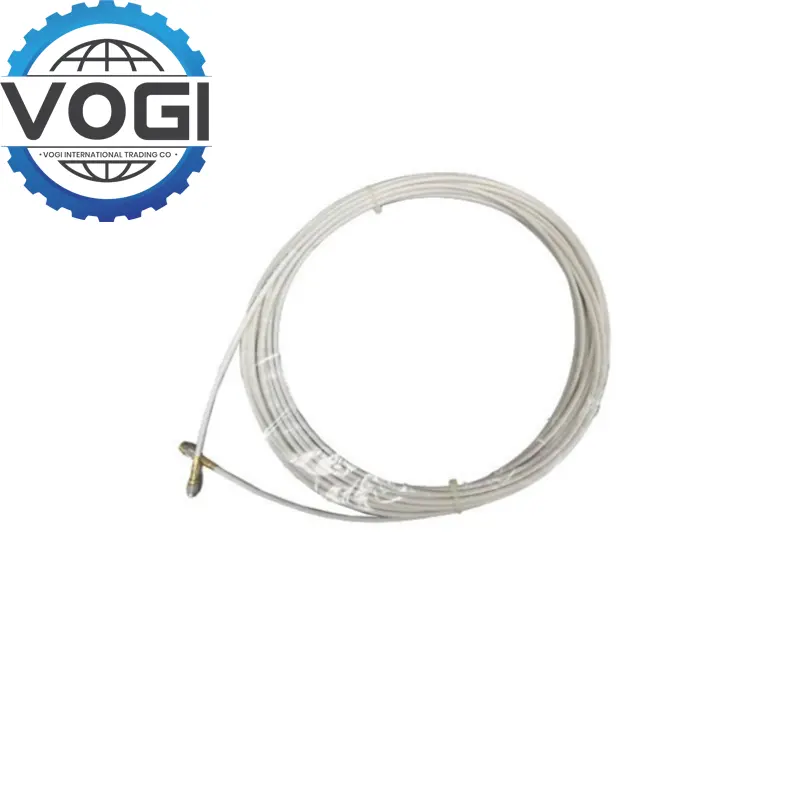

Vibro-Meter EA402 913-402-000-013 A1-E090-F1-G088 Proximity Measuring System Extension Cable
Technical ParametersVOGI
Part Number & Configuration
EA402 913-402-000-013
A1: EA402 series extension cable
E090: 9.0 m length
F1: FEP (fluoropolymer) dielectric jacket
G088: 88 % stainless-steel braid coverage
Cable Construction
Core Conductor: Silver-plated copper, PTFE insulation
Dielectric Jacket: FEP for chemical, UV, and temperature resistance
Shield: 88 % stainless-steel braid for high EMI/RFI rejection
Outer Jacket: Oil- and abrasion-resistant polyurethane, Ø 8 mm
Electrical Characteristics
Characteristic impedance: 50 Ω ± 5 %
Capacitance: ≤ 110 pF/m
Voltage rating: 300 V DC
Shield drain current: up to 1 A
Connector Interfaces
Probe end: M12 5-pin male (locking)
Conditioner end: M12 5-pin female (keyed)
Environmental & Mechanical
Minimum bend radius: ≥ 10 × cable Ø (~ 80 mm)
Operating temperature: –40 °C to +140 °C
Ingress protection: IP67 when mated
Chemical resistance: Oils, fuels, solvents per IEC 60068-2-45
Key Features
VOGI
Long-Reach Connectivity (9 m)
Enables placement of conditioners or racks well away from high-vibration or hazardous zones.
Superior EMI/RFI Shielding
88 % stainless-steel braid ensures minimal interference in electrically noisy environments.
Chemical & UV Resistance
FEP dielectric and polyurethane jacket withstand aggressive chemicals, UV exposure, and extreme temperatures.
Rugged Quick-Disconnect
M12 connectors provide fast field installation, sealed to IP67 for splash-zone and wash-down conditions.
High Flexibility & Durability
Maintains signal integrity through frequent flexing and mechanical stress typical in industrial settings.
Freight Estimation(Part Of The Area)VOGI
Destination |
Freight |
Middle East |
$35 |
Southeast Asia |
$15 |
South Asia |
$45 |
South Africa |
$37 |
Europe and USA |
$24 |
Russia |
$42 |
Applications
VOGI
Offshore & Coastal Installations
Extends probes on compressor or pump skids to sheltered instrument racks, resisting salt spray and harsh marine atmospheres.
Chemical-Processing Plants
Routes from reactor agitator probes back to safe-area conditioners, withstanding solvents and caustics without degradation.
Remote Hydroelectric Units
Bridges probes in pit vaults to VM600 racks meters away, preserving full bandwidth for both DC deflection and high-frequency vibration.
