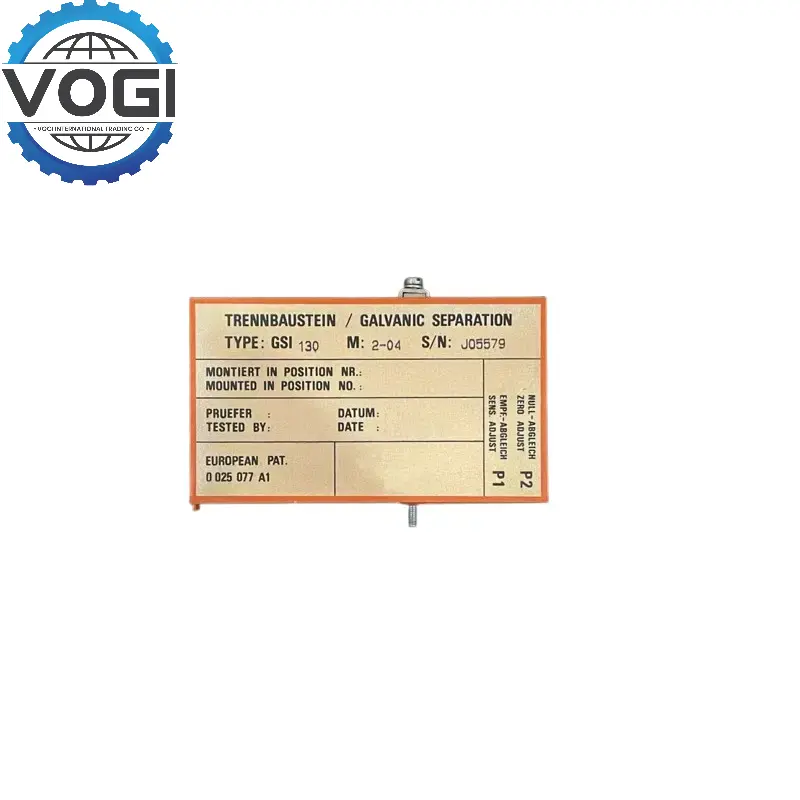

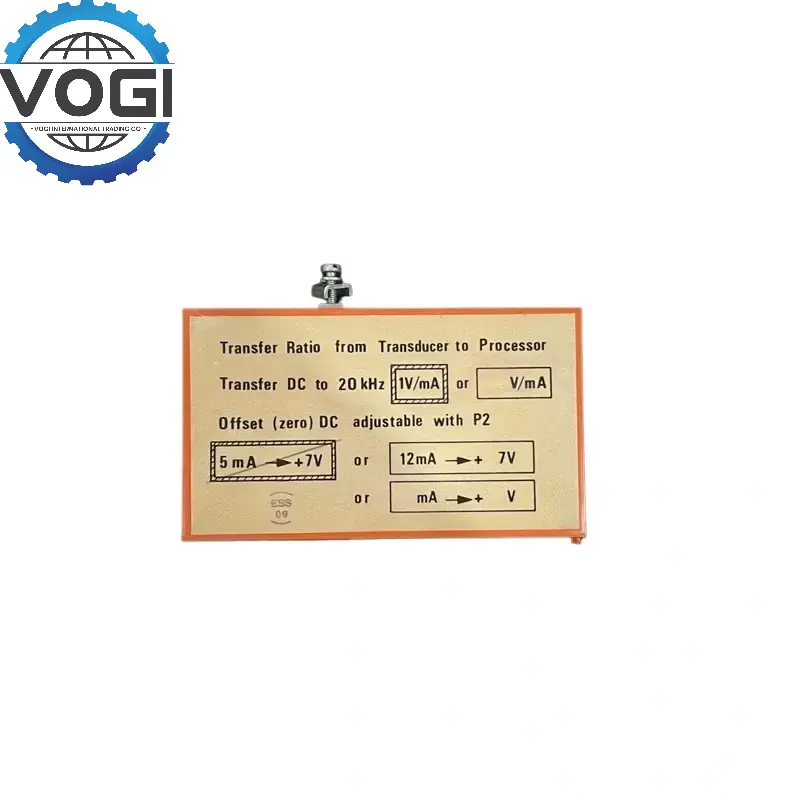

Vibro-Meter GSI130 244-130-000-204 Galvanic separation unit

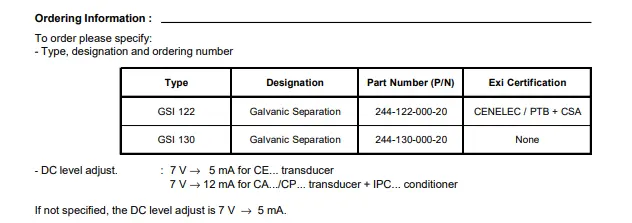

Technical Specification:

Supply voltage (to GSI) : +24 V ±5% (e.g. from UVC...processor)

Ripple (100 Hz) : 100 mV pp max.

Consumption:

- No load : Approx. 20 mA

- 20 mA load : Approx. 60 mA

- Short-circuit : Max. 120 mA

Output voltage (to conditioner):

- No load : 18 V ±1 V

- 20 mA : 16 V ±1 V

Short-circuit current : 60 mA

Pass-band : DC to 10 kHz ±0.5%, -1 dB at

20 kHz

Transfer function : 1 V/mA factory set (potentiometer P1)

Temperature drift : <200 ppm/°C

Linearity : ±0.5% over dynamic measuring

range

DC signal component : Adjustable by

(to UVC) potentiometer P2

Umin. = +2 V

Umax. = power supply

(+24 V ±5%) - 2.5 V

Noise:

- Max. residual on signal : 12 mVpp at 5 mA DC
