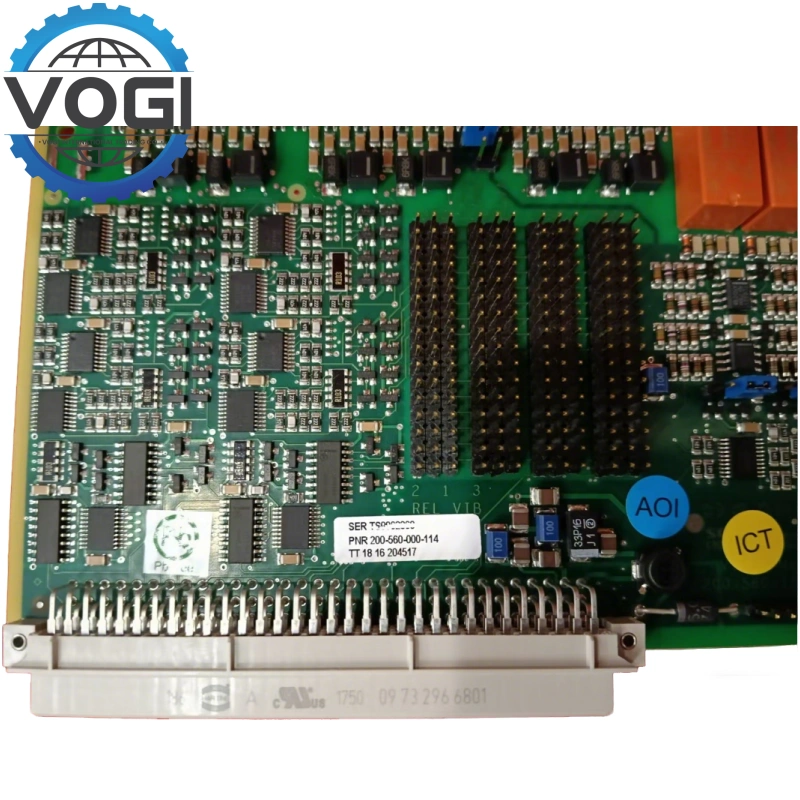

Vibro-meter IOC4T 200-560-000-111 input/output card

IOC4T 200-560-000-111 Technical parameters
Dynamic signal inputs

Quantity: 4

Features: Electromagnetic interference (EMI) filtered, compliant with EC standards.

Speed ​​(tachometer) inputs

Quantity: 2

Features: EMI filtered, compliant with EC standards.

Analog outputs (DC)

Quantity: 4 (each corresponding to an MPC4 dynamic signal channel)

Signal range:

Voltage output: 0–10 V (selected by jumper)

Current output: 4–20 mA (selected by jumper, actual drive range 2–23 mA)

Accuracy: ≤±1.5%

Linearity error: ≤±0.5%

Load capacity:

Voltage output: 100 kΩ

Current output: <325 Ω

Output impedance: 2000 Ω (early version feature).

Relay outputs

Quantity: 4 local relays (RL1–RL4)

Type: PE014005

Contact configuration: 1×NC or 1×NO (user configurable)

Rated voltage/current: 250 VAC/5 AAC

Maximum breaking capacity: 1250 VA (AC), see document curve for specific DC load capacity.

Action time: Typical 8 ms (action)/8 ms (release)/6 ms (bounce).

IOC4T 200-560-000-111 Digital signal interface (DSI)

Control signal:

Alarm reset (AR): Edge sensitive, high and low level jump trigger reset.

Danger bypass (DB): Closing contact can bypass the danger relay output.

Trip multiplier (TM): Closing contact can adjust the alarm threshold through software configurable proportional factor.

IOC4T 200-560-000-111 Temperature range

Operating: −25–65 °C (−13–149 °F)

Storage: −40–85 °C (−40–185 °F)

Humidity

Operating: 0–90% noncondensing

Storage: 0–95% noncondensing

Certifications

Electromagnetic compatibility (EMC): Meets EN 50081-2, EN 50082-2, IEC/EN 61000-6-2/-6-4.

Electrical safety: Meets IEC/EN 61010-1, TR CU 004/2011.

Vibration: Meets IEC 60255-21-1 (Class 2).

Safety integrity level: SIL 1 (IEC 61508).

Environmental: Non-RoHS compliant (early version feature).

IOC4T 200-560-000-111 Connectors

J1: 16-pin screw terminal for dynamic signal input (channels 1–4).

J2: 16-pin screw terminal for speed inputs (channels 1–2) and relay contact outputs.

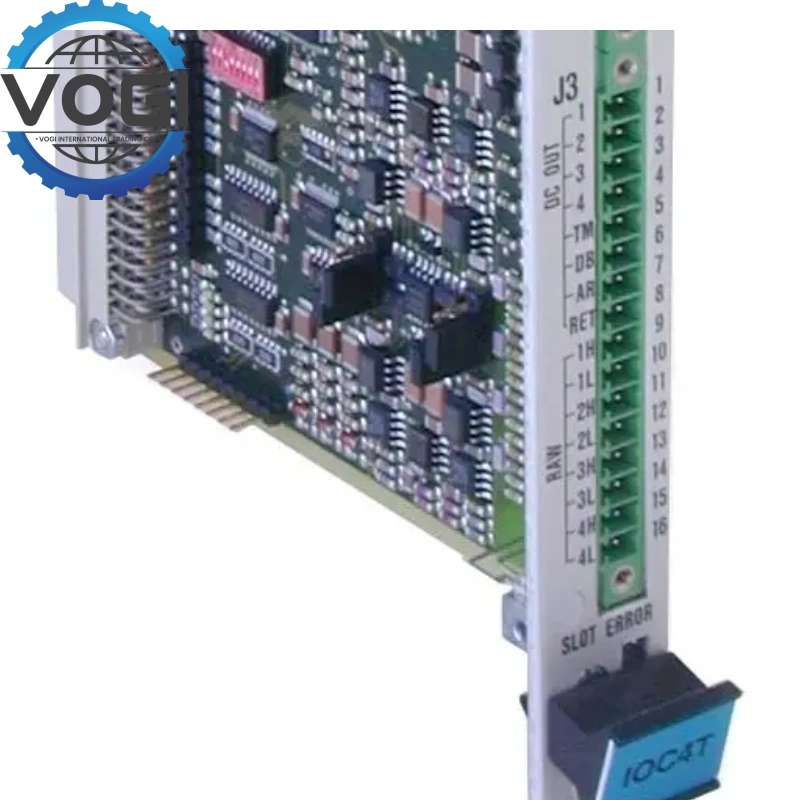

J3: 16-pin screw terminal for analog outputs, DSI control signals, and raw sensor signal buffer outputs.

IOC4T 200-560-000-111 Power Supply

Power: From VM600 chassis (+5 VDC and ±12 VDC)

Power Consumption:

+5 VDC: 1.5 W

±12 VDC: 0.7 W (add 0.25 W for each current output used)

Type: IOC4T

Designation: Different versions of the input/output card (for the MPC4)

Ordering number (PNR): -Standard   200-560-000-1Hh

                                            –Separate circuits   200-560-000-2Hh

Hot plug: IOC4T supports hot plug (hot plug).

Version type: It is a standard version (non-independent circuit version), and the corresponding order number prefix is ​​"200-560-000-1".

Compatibility: It needs to be used in conjunction with the MPC4 mechanical protection card and installed in the VM600 rack (ABE04x or ABE056).
