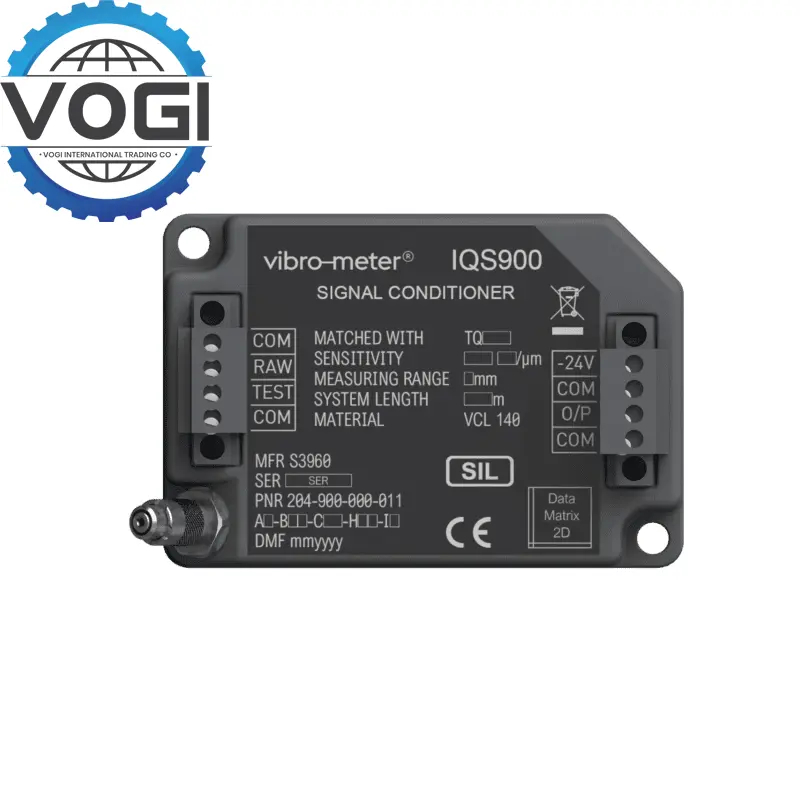

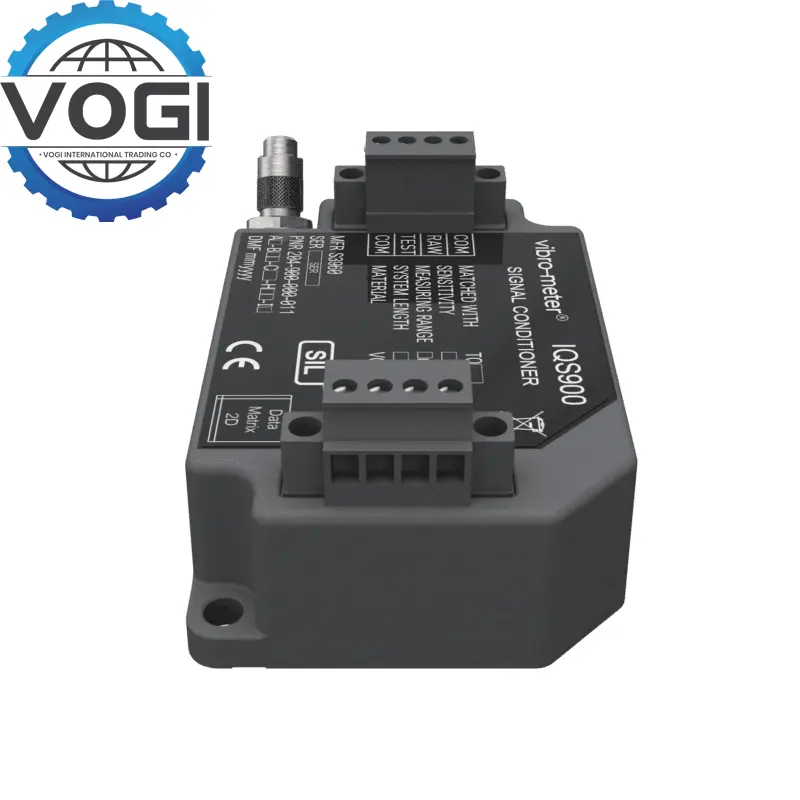

Vibro-Meter IQS900 204-900-000-011 A1-B21-C1-H10-I0 signal conditioner
Technical ParametersVOGI
Part Number & Suffix
204-900-000-011 with A1-B21-C1-H10-I0
A1: IQS900 series, combined proximity/vibration conditioner
B21: Dual outputs – 4–20 mA loop & 0–10 V raw bus
C1: Single-channel configuration
H10: 10 m integral, low-capacitance PTFE cable
I0: Standard (no intrinsic-safety barrier)
IQS900 204-900-000-011 A1-B21-C1-H10-I0 Inputs

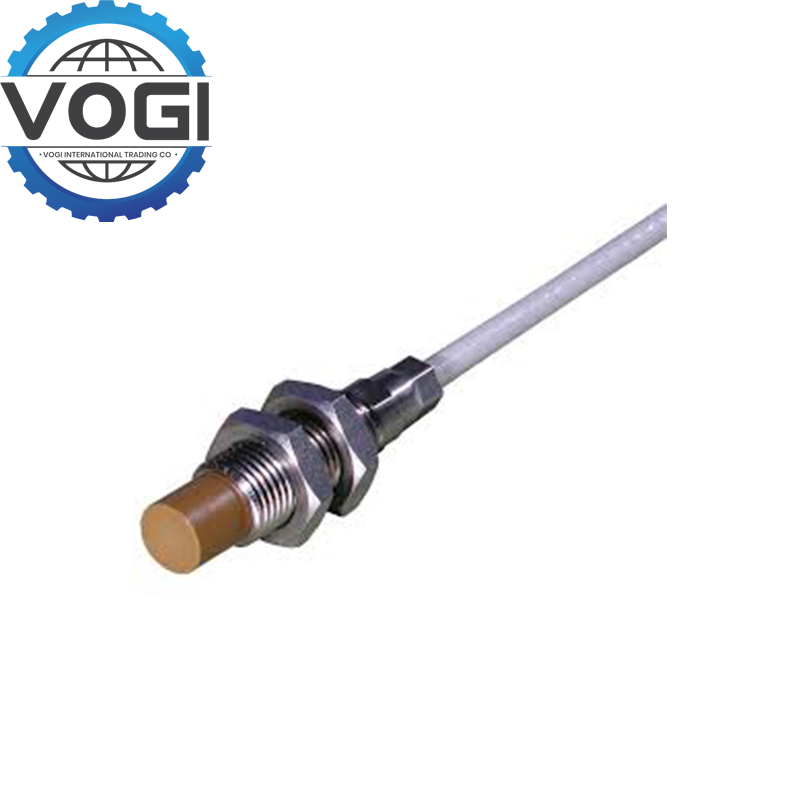

Proximity Probe: 0–4 mm eddy-current probe interface
Vibration Sensor: IEPE accelerometer or velocity transducer input
Probe Excitation: –20 V…–32 V DC constant-current (13 mA)
Accelerometer Supply: 24 V DC, 4 mA constant current
IQS900 204-900-000-011 A1-B21-C1-H10-I0 Signal Conditioning
Proximity Span: 0–4 mm linearized (≤ 1 % nonlinearity)
Vibration Bandwidth: DC to 20 kHz (–3 dB)
Vibration Modes: Acceleration, velocity or displacement via selectable digital integration
Filtering: Programmable high-pass and low-pass cutoff frequencies for vibration channel
IQS900 204-900-000-011 A1-B21-C1-H10-I0 Outputs
4–20 mA Loop: Scaled to active channel (gap or vibration RMS) with fail-safe (< 3 mA on fault)
0–10 V Raw Bus: Buffered analog for direct VM600 backplane distribution
Fault Indication: Loop < 3 mA and raw bus > 10 V drive alert conditions
Diagnostics & Status
Front-Panel LEDs: “OK”, “Fault”, and channel mode (Prox/Vibe)
Self-Test: Monitors cable continuity, sensor health, and supply levels
Hot-Swap: Supports live insertion/removal without interrupting other rack modules
Mechanical & Environmental
Operating Temp: –25 °C to +65 °C; Storage: –40 °C to +85 °C
Shock/Vibration: IEC 60068-2 compliant
Humidity: up to 95 % non-condensing
Key Features
VOGI
Dual-Channel Conditioning in One Module
Seamlessly handles both proximity-probe gap measurement and high-frequency vibration on a single card.
Flexible Output Options
Simultaneous 4–20 mA loop for PLC/DCS and 0–10 V raw bus for protection/trending cards.
Wideband Vibration Capture
DC to 20 kHz response with programmable filtering for targeted analysis of bearing faults, gear mesh, or structural resonance.
Integrated Diagnostics
Continuous health checks on sensor continuity, cable integrity, and internal electronics with clear LED feedback.
Extended Cable & Hot-Swap
10 m low-capacitance, PTFE-insulated cable preserves signal fidelity; card can be serviced without powering down rack.
Seamless VM600 Integration

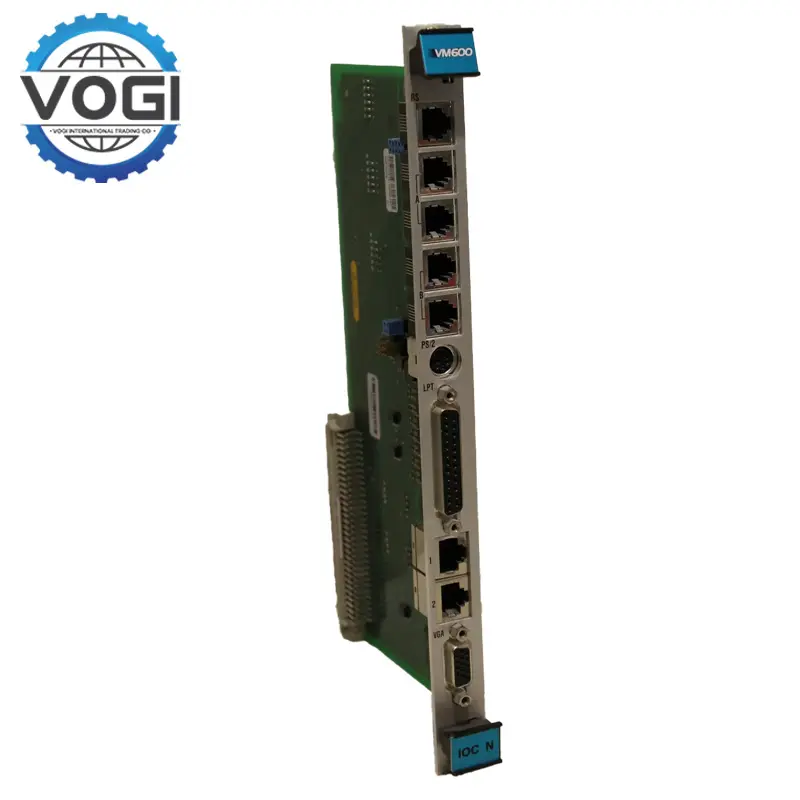

Rear-plane bus delivers all power and signal routing to downstream MPC or CMC modules and to VibroSight software.
