VIBRO-METER

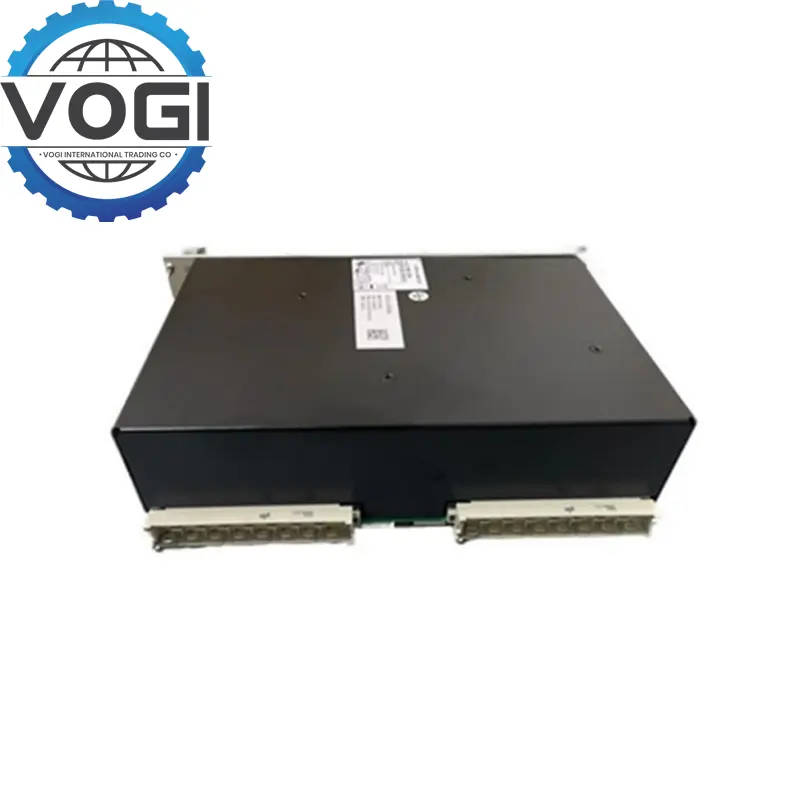

Vibro-Meter RPS6U 200-582-500-013 Rack Power Supply
Technical ParametersVOGI
Part Number: 200-582-500-013
Inputs: Two independent 18–36 V DC feeds
Output: 24 V DC ± 1 % to backplane bus
Current Capacity: Up to 10 A per module (20 A total when two share load)
Efficiency: ≥ 90 % at full load
Protections: Reverse-polarity, inrush-limit, auto-reset overcurrent/short-circuit, thermal fold-back
Monitoring: Front-panel LEDs (each input OK/fault, output OK); rear “Power-Good” contact
Form Factor: VM600 6 U card (160 × 160 × 120 mm), hot-swap capable
Environment: –25 °C to +65 °C operating; up to 95 % RH non-condensing; IEC shock/vibration compliant
EMC/EMI: Meets industrial immunity and emissions standards
Key Features
VOGI
True Redundancy & Load Sharing
Two DC inputs automatically balance load—loss of one input does not interrupt 24 V bus.
Advanced Protection
Inrush limiting and self-resetting overcurrent/thermal protection safeguard module and rack.
Comprehensive Status Reporting
Local LEDs plus remote-status contact enable instant fault detection and DCS/SCADA integration.
Hot-Swap Serviceability
Replace under power (with second supply present) to minimize downtime.
Seamless Backplane Integration
Direct plug-in to VM600 bus supplies all slots without external cabling.
Industrial-Grade Reliability
Designed for heavy-industry shock, vibration, temperature extremes, and electrical noise.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$67 |
|
Southeast Asia |
$20 |
|
South Asia |
$90 |
|
South Africa |
$72 |
|
Europe and USA |
$41 |
|
Russia |
$81 |
Applications
VOGI
Power-Plant Turbine Protection:
Dual-fed by battery and UPS, RPS6U ensures uninterrupted 24 V for MPC4 trip logic and CMC16 trend cards on turbine skids.
Dual-fed by battery and UPS, RPS6U ensures uninterrupted 24 V for MPC4 trip logic and CMC16 trend cards on turbine skids.
Offshore Compressor Skids:
Mounted in marine-rated enclosures, takes both rig DC bus and local UPS inputs, powering VM600 monitoring cards even if one source fails.
Mounted in marine-rated enclosures, takes both rig DC bus and local UPS inputs, powering VM600 monitoring cards even if one source fails.
Refinery Distributed Monitoring:
Multiple VM600 racks across a complex share redundant power, so a single-point failure won’t silence critical pump or column alarms.
Multiple VM600 racks across a complex share redundant power, so a single-point failure won’t silence critical pump or column alarms.
