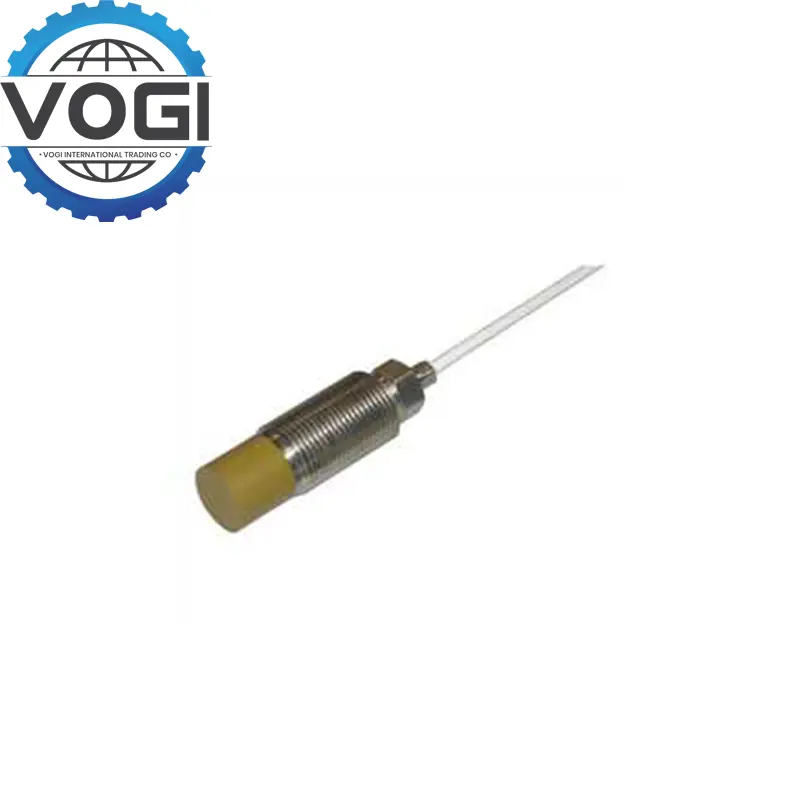

Vibro-Meter TQ403 111-403-000-012 A1-B1-C036-E010-F0-G000-H10 proximity sensor

Measuring Range & Sensitivity

Span: 0 – 2.5 mm linear (ideal 0.1–2.5 mm)

Output: 4 mV/µm (voltage mode) or 1.25 µA/µm (with compatible conditioner)

Bandwidth: DC – 20 kHz (–3 dB)

Linearity: ≤ ± 1 % full-scale (with matched conditioner)

Interchangeability: ≤ 5 % variation among identical probes

Excitation: –20 V to –32 V DC from conditioner (≈ 13 mA draw)

Impedance: ≈ 500 Ω (voltage mode) / drive ≤ 800 Ω (current mode)

Body: 36 mm × 12 mm Ø, aluminum alloy housing

Tip: Flush-mounted hardened-steel

Mounting Thread: M6 × 0.5 (E010)

Cable: None integral; user-supplied PTFE-insulated, shielded coax (per H10 spec)

Operating Temp.: –25 °C to +140 °C

Storage Temp.: –40 °C to +150 °C

Shock/Vibration: 50 g, 2 ms; ≤ 25 g, 5 Hz–5 kHz

Pressure: Up to 100 bar at probe face

Ingress: IP 65 at tip; IP 40 at cable entry

ATEX Zone 1 (Ex ia IIC T6), CSA Class I Div 1 Groups A B C D, IEC 60529/CE/CENELE

Short 36 mm body ideal for tight or recessed mounting locations.

No factory-fitted cable lets installers choose exact length and connector type on site.

Captures slow centerline shifts and high-frequency vibration (DC–20 kHz) with micron-level precision.

Durable against shock, vibration, moisture and moderate chemical exposure.

Intrinsically safe when paired with approved conditioners, suitable for explosive atmospheres.

Recessed bearing pedestals often require short-body probes; user-run cable connects probe to an IQS-series conditioner, feeding VM600 protection cards for eccentricity trip logic.

Probe sits close to impeller shroud in tight casing; field-selected cable routes back to DCS-integrated conditioners to detect rubs or thrust shifts.

Limited mounting space inside draft-tube housings calls for a compact probe; cable runs through the dam structure to a dry-area monitoring rack, capturing both DC deflection and high-frequency
