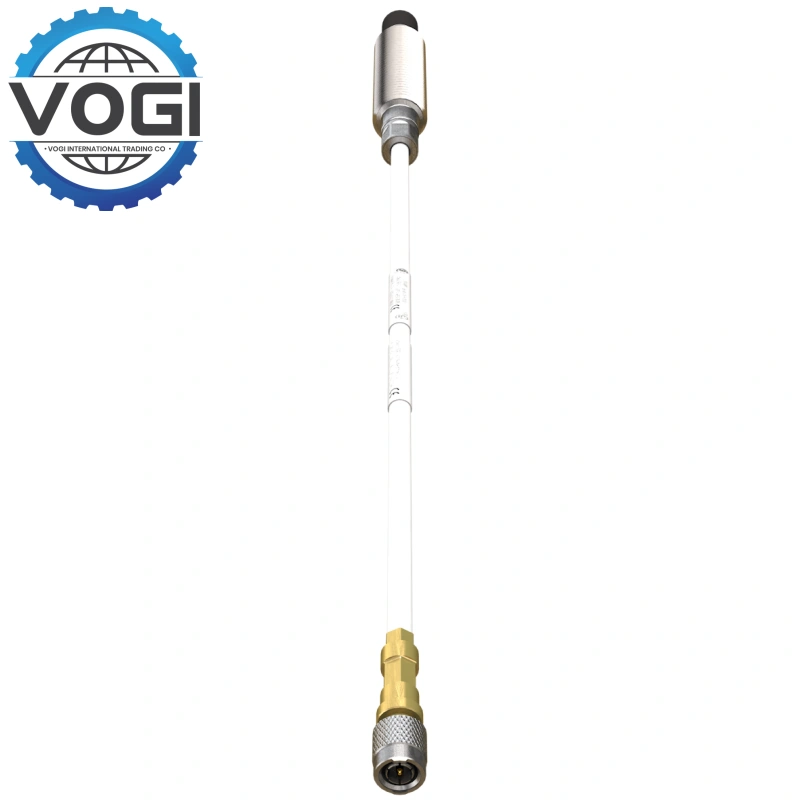

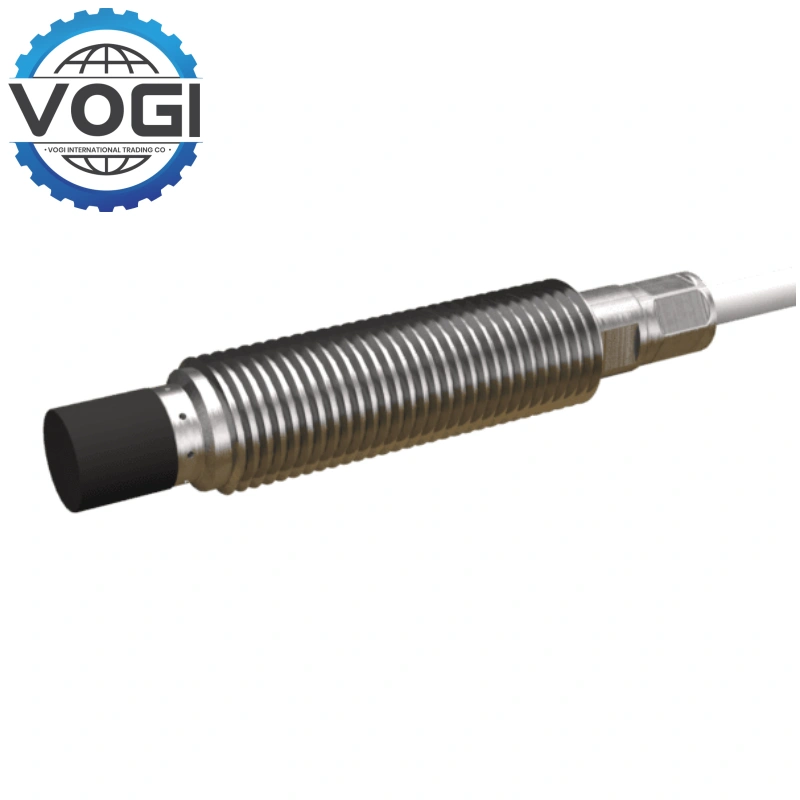

Vibro-meter TQ902 111-902-000-011 proximity sensor
Vibro meter TQ902 key parametersVOGI
TQ902 111-902-000-011
Measurement range: 0.08 or 0.16 in | 2 or 4 mm
Measurement range: 0.08 or 0.16 in | 2 or 4 mm
Operating temperature range: −40 to 356 °F | −40 to 180 °C
Integrated cable length: 1.6, 3.3, 4.9, 6.6 or 16.4 ft | 0.5, 1.0, 1.5, 2.0 or 5.0 m
Protection rating: IP68
Vibro meter TQ902 Key FeaturesVOGI
TQ902 111-902-000-011
Designed for the contactless measurement of relative vibration and axial displacement in turbines, compressors, pumps and fans
Designed for the contactless measurement of relative vibration and axial displacement in turbines, compressors, pumps and fans
2 or 4 mm measurement range (Ø8.2 mm sensor)
−40 to 180 °C operating temperature, IP68 protection rating
0.5, 1.0, 1.5, 2.0 or 5.0 m integral coaxial cable
Versions certified for use in potentially explosive atmospheres
Conforms to API 670 5th edition
Freight Estimation(Part Of The Area)VOGI
Destination |
Freight |
Middle East |
$35 |
Southeast Asia |
$15 |
South Asia |
$45 |
South Africa |
$37 |
Europe and USA |
$24 |
Russia |
$42 |
Vibro meter TQ902 Installation and UsageVOGI
1.TQ902 111-902-000-011 Installation points
Component matching
Requires EA902 extension cable and IQS900 signal conditioner, optional stainless steel hose or FEP sheath protection cable.
Mechanical installation
Thread fixation: Select the thread specification (such as M10×1) according to the device interface, and tighten the connector by hand until it is locked to avoid overtightening.
Cable bending: The minimum bending radius of the integrated/extended cable is 20 mm, and the stainless steel hose is 50 mm.
Total length configuration: Supports 1 m, 5 m, and 10 m system lengths (integrated + extension cable), and the electrical tuning length must be ensured (such as 5 m system ≥4.4 m).
Explosion-proof environment
For use in Ex areas, the corresponding explosion-proof model (Ex ia/nA) must be selected. When the signal conditioner is installed in Zone 2, it must be placed in an IP54 housing.
2. TQ902 111-902-000-011 Electrical connection
Power supply
IQS900 power supply: −18 to −30 VDC (current output) or −19 to −30 VDC (voltage output), do not reverse polarity.
Signal calibration
Standard temperature +23°C ±5°C, target is VCL 140 steel, non-standard materials require customized calibration curves.
Verify output range (e.g. B21 model: 0.15–2.15 mm gap corresponds to −1.6 to −17.6 V).
Anti-interference
Keep the cable away from strong electromagnetic sources and match the impedance of the monitoring system (voltage ≥50 kΩ, current ≤350 Ω).
3. TQ902 111-902-000-011 Precautions for use
Environmental requirements
Operating temperature −40°C to +180°C, Ex area ≤+195°C, protection level IP68 (sensor head).
Maintenance inspection
Regularly check whether the cable connection is loose, whether the hose is damaged, and monitor drift at high temperature (>5% requires calibration).
Troubleshooting
No signal: Check the power supply, connector polarity and contact.
Unstable signal: Eliminate electromagnetic interference or replace the faulty component (sensor/cable/conditioner).
