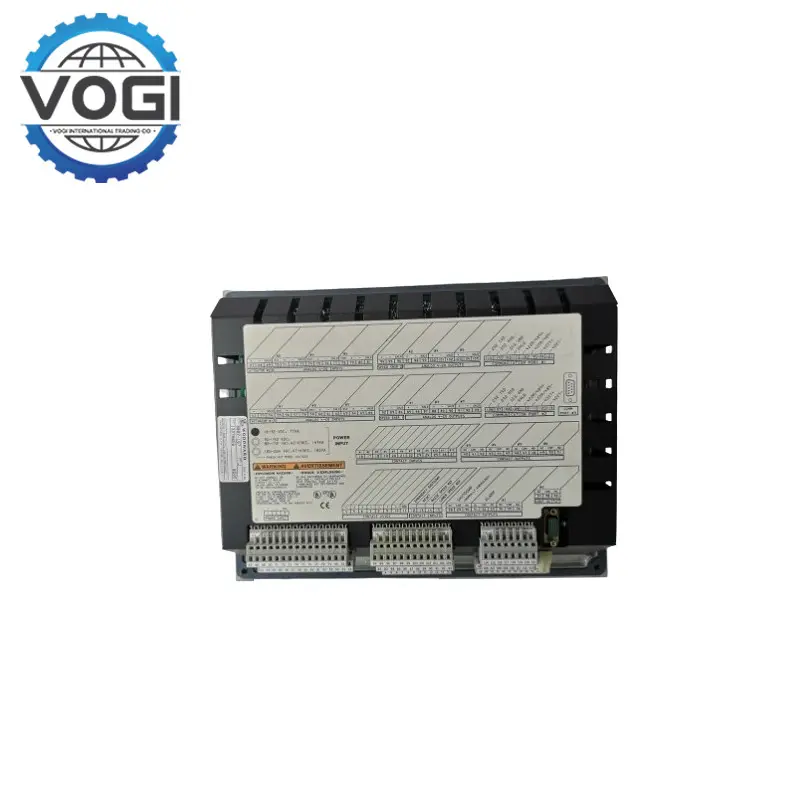

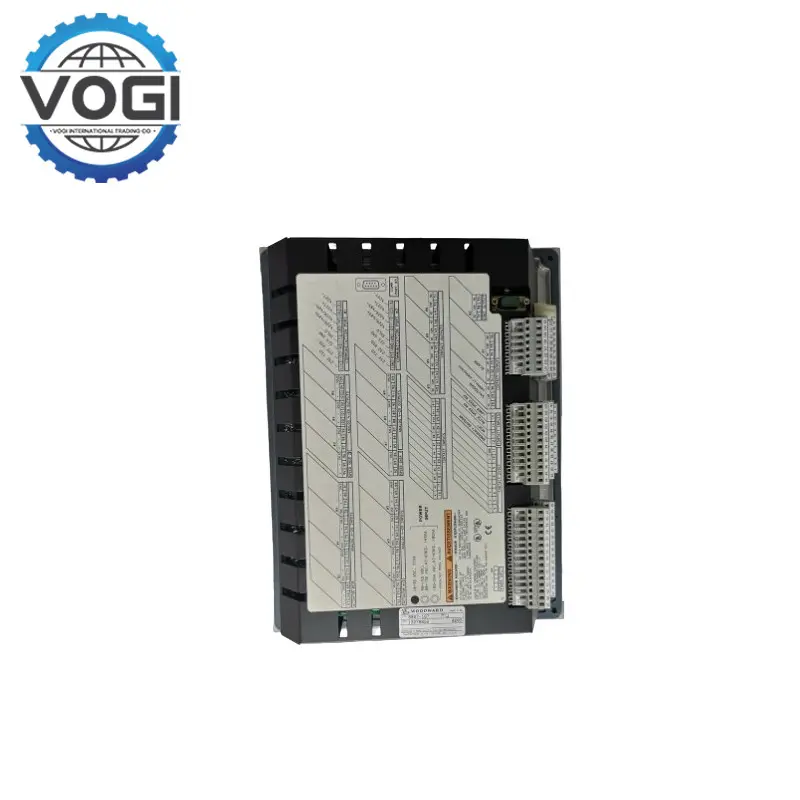

Woodward 4-314871-1 Mechanical Governors for Steam Turbines
Key SpecificationsVogi
1.Operating Voltage: 24V.DC±5%.
2.Operating Oil Pressure: 0.6-1.5MPa.
3.Regulating Current: 4-20mA.DC.
4.Output Signal: 0.15-0.45MPa hydraulic signal.
5.Adjustable Range: 0.05-0.8MPa.
6.Power Consumption: ≤60W.
7.Work Temperature： -10-65°C.
8.Relative humidity: ≤85%.
Functional FeaturesVogi
1.Advanced Control Algorithms: By continuously calculating the error between a desired set point and measured variables, it dynamically adjusts outputs using proportional, integral, and derivative terms. This ensures tight tolerances in applications like temperature control, where stability is critical.
2.Modular Design: Modular architecture supports customization and scalability. Users can replace or add modules (e.g., communication interfaces) to adapt to diverse industrial networks or evolving system requirements.
3.Data Logging and Analysis: Records operational parameters—inputs/outputs, runtime, and fault histories—for retrospective analysis. Engineers leverage this data to optimize performance, predict failures, and schedule maintenance. For example, trend analysis of motor torque logs can reveal inefficiencies in conveyor systems.
4.Fault Detection and Diagnosis: Alerts operators and pinpoints fault types and locations. This reduces downtime by enabling rapid troubleshooting and corrective actions, ensuring minimal operational disruption.
Freight Estimation(Part Of The Area)Vogi
|
Destination |
Freight |
|
Middle East |
$42 |
|
Southeast Asia |
$15 |
|
South Asia |
$55 |
|
South Africa |
$47 |
|
Europe and USA |
$27 |
|
Russia |
$50 |
Application AreasVogi
Power Plants: Controller controls turbine speed, load distribution, and grid synchronization in coal, gas, and hydroelectric plants. Added efficiency and reliability by guaranteeing an even output and making it easy for the output to match with the grid.
Manufacturing Plants: Controls spindle speeds in CNC machines and manages motor torque for conveyor systems. It boosts precision, material-handling efficiency and production-line throughput by synchronizing processes.
Oil and Gas: The gadget equips and enhances the operations of pumps and compressors for fluid/gas improvement and controls the speed and energy of drilling devices. Such precision reduces downtime in rugged environments while ensuring safe, efficient extraction procedures are in place.
Renewable Energy: It allows pitch control of blades and generator speed to maximize energy capture and avoid overloads.
AdvantagesVogi
True Control: Able to transform electrical signals to achieve corresponding hydraulic signals to accurately regulate the operation parameters of the equipment and ensure the stable operation of the equipment.
Superb stability: It has superb stability in the working process, can adapt to the working condition and the environmental change different, reduce the failure and the system fluctuates to risk.
