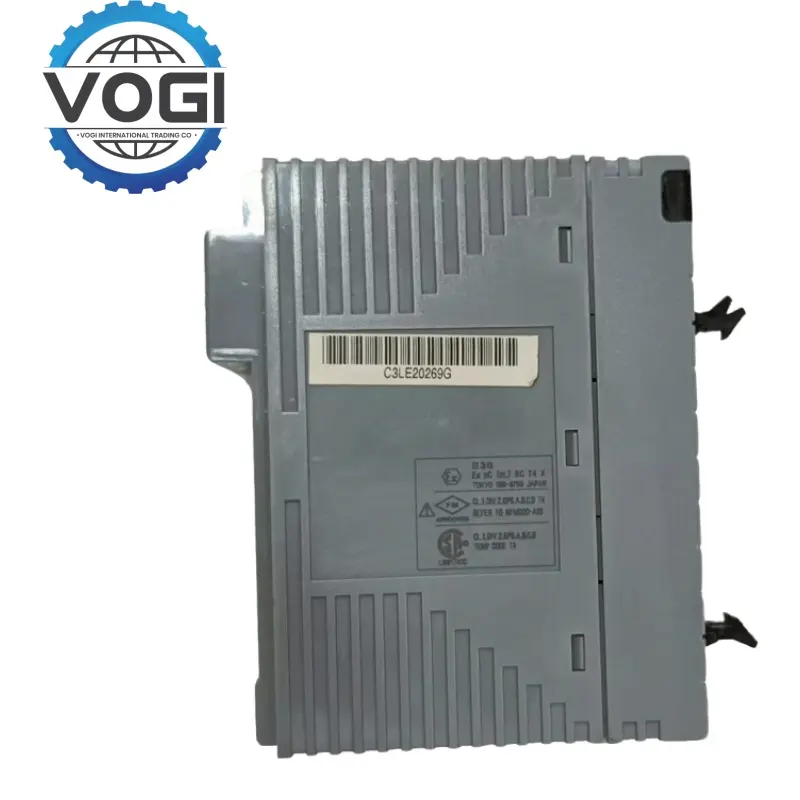

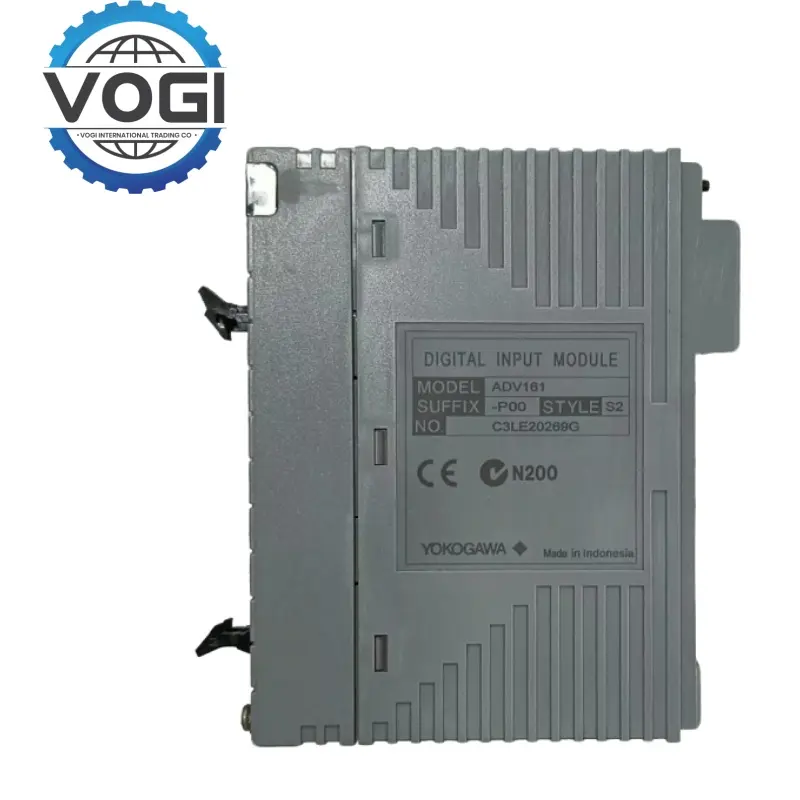

Yokogawa ADV161-P00 Digital Iutput Module
Key SpecificationsVOGI
Number of Input Channels: 64
Rated Input Voltage: 24 VDC (sink/source)
Input ON Voltage: 20 to 26.4 VDC
Input OFF Voltage: 0 to 5 VDC
Input Current: ≤ 2.6 mA
Common Mode Voltage: ±250 VDC
Isolation Voltage: 1500 VDC (between channels and power supply)
Response Time: ≤ 1 ms
Operating Temperature: -20 to 70 °C (-4 to 158 °F)
Humidity: 10 to 90% RH (non-condensing)
Mounting: DIN rail
Key FeaturesVOGI
Hardware specifications: Yokogawa ADV161-P00 is a 64-channel digital input module that supports 24V DC dry contact/wet contact input, independent 250V AC isolation for each channel, built-in RC filter circuit (10ms) to suppress noise, and response time ≤10ms.
System compatibility: Yokogawa ADV161-P00 is compatible with CENTUM VP/CS 3000 system, realizes multi-module cascading and dual redundant configuration through ESB bus, is compatible with Modbus RTU protocol and provides RS-485 interface.
Environmental adaptability: Yokogawa ADV161-P00 can operate in a wide temperature range of -10℃~+60℃, anti-vibration/shock complies with IEC 60068 standards, withstands 2kV AC, passes CE certification, and optional explosion-proof model.
Diagnosis and maintenance: Yokogawa ADV161-P00 has real-time LED status indication, supports disconnection/short circuit detection and hot-swap maintenance, and reduces downtime.
Typical applications: Yokogawa ADV161-P00 can be used in petrochemical ESD systems, discrete manufacturing production line equipment status monitoring, and water treatment pump group/fan signal acquisition.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$43 |
|
Southeast Asia |
$31 |
|
South Asia |
$56 |
|
South Africa |
$46 |
|
Europe and USA |
$28 |
|
Russia |
$51 |
APPLICATIONVOGI
Petrochemical and Energy: The 64-channel high-density design can simultaneously monitor the status of equipment such as compressors and valves, and supports dual redundant configuration (ESB bus) to ensure the continuity of the ESD system; 250V AC channel isolation and anti-electromagnetic interference (IEC 61000-4) meet the needs of explosion-proof areas.
Discrete Manufacturing and Production Lines: The 10ms response time and RC filter circuit of each channel support the real-time and stable acquisition of robot joint position detection and conveyor belt start and stop signals. The modular design is easy to expand to complex production lines such as automobiles and electronics.
Water Treatment and Environmental Protection: -10℃~+60℃ wide temperature operation and IP67 protection adapt to humid environments such as pump rooms and sedimentation tanks, and support Modbus RTU protocol to achieve seamless connection between liquid level switches, flow meter signals and PLC/DCS.
Power and Transmission and Distribution: 2kV AC withstand voltage and RS-485 interface ensure the anti-interference transmission of substation circuit breakers and disconnector status signals, and the dual redundant mode improves the fault tolerance of the power grid monitoring system.
Pharmaceuticals and Food & Beverages: Sleeveless cable terminals (0.5-2mm²) simplify cleanroom wiring, and channel isolation and real-time LED status indication meet the precise monitoring of equipment status under GMP standards.
Metallurgy and Mining: Anti-vibration/shock (IEC 60068) design is suitable for strong vibration equipment such as blast furnaces and crushers, and supports hot-swap maintenance to reduce downtime and ensure continuous production.
