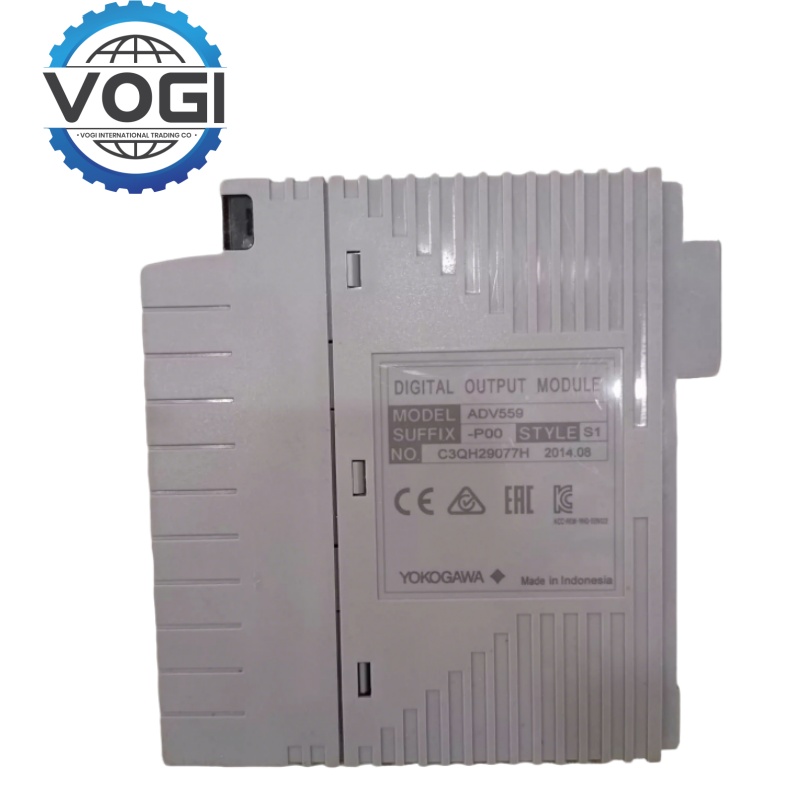

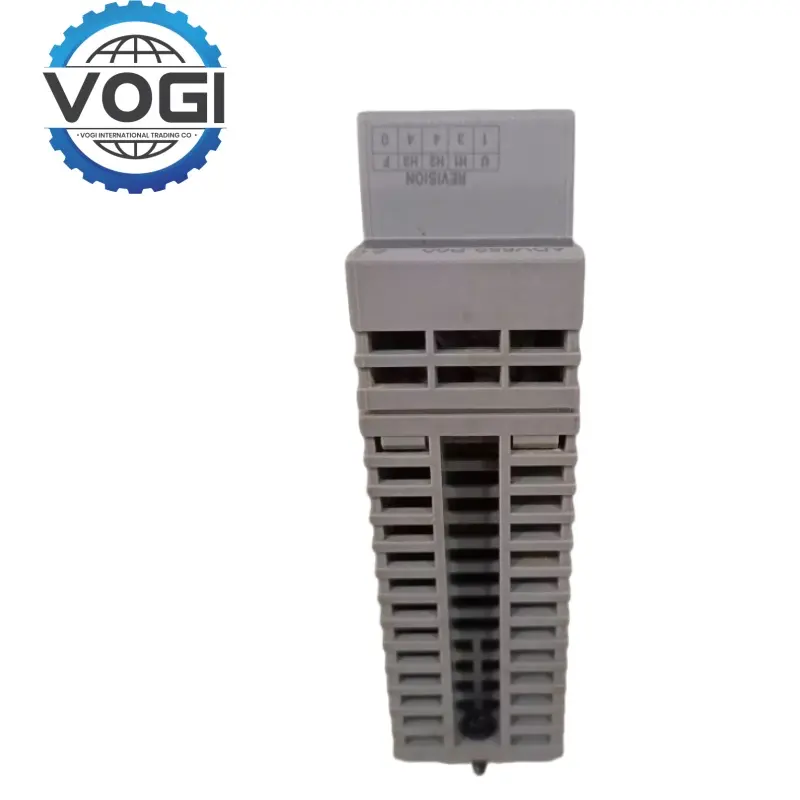

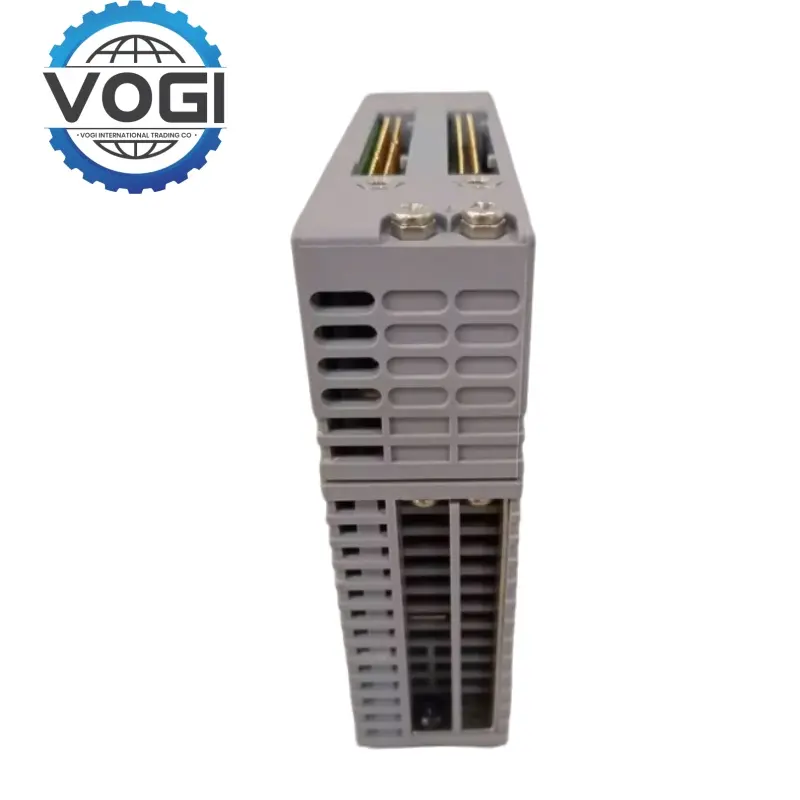

Yokogawa ADV559-P00 Digital Output Module
Key SpecificationsVOGI
Number of l/0 channels: 32-channel output
Signal lsolation: lsolated channels
Input signal: Not applicable
Output Signal: Transistor contact
Output Contact Rating: inductive load, resistive load: 30 V Dc, 100 mA
Output Response Time: 16 ms or less
Pulse Width: 8 ms to 7200 s
Pulse Width Resolution: 8 ms, add max. 1ms for ON/OFF delay time
Maximum Current Consumption: 570 mA (5 V DC)
External Connection: Dedicated cable (KS2)
Compatible Card: ST4 compatible
Key FeaturesVOGI
32-channel isolated output: Yokogawa ADV559-P00 supports 30 V DC/100 mA transistor signals, with independent isolation for every 16 channels, suitable for actuators such as solenoid valves and relays.
High-speed response and control: Yokogawa ADV559-P00 has a signal response of ≤16 ms, supports PWM (8 ms resolution) and pulse control up to 7200 seconds.
ST4 system compatibility: Yokogawa ADV559-P00 seamlessly connects to Yokogawa CENTUM-ST DCS, and realizes multi-module cascading and redundant communication through the ESB bus.
Industrial-grade protection: Yokogawa ADV559-P00 operates in a wide temperature range of -10℃~+60℃, withstands 2 kV AC (I/O and system), and anti-electromagnetic interference complies with the IEC 61000-4 standard.
Self-diagnosis and redundancy: Yokogawa ADV559-P00 can monitor channel status in real time, support dual redundant configuration (need corresponding models), and improve system fault tolerance.
Flexible configuration: Yokogawa ADV559-P00 parameters can be set through software, compatible with Yokogawa CENTUM VP and third-party configuration tools.
