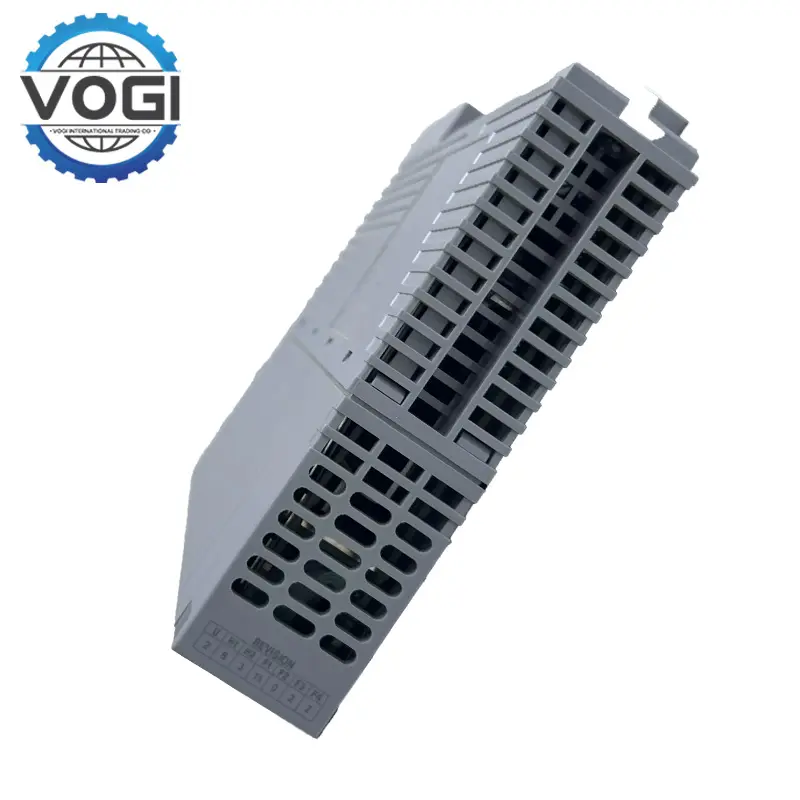

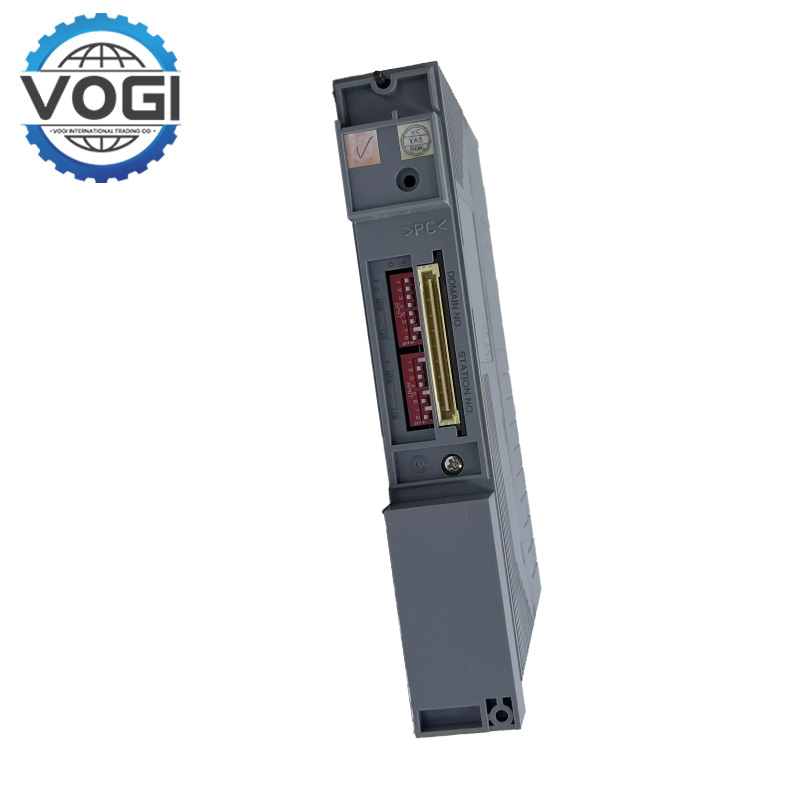

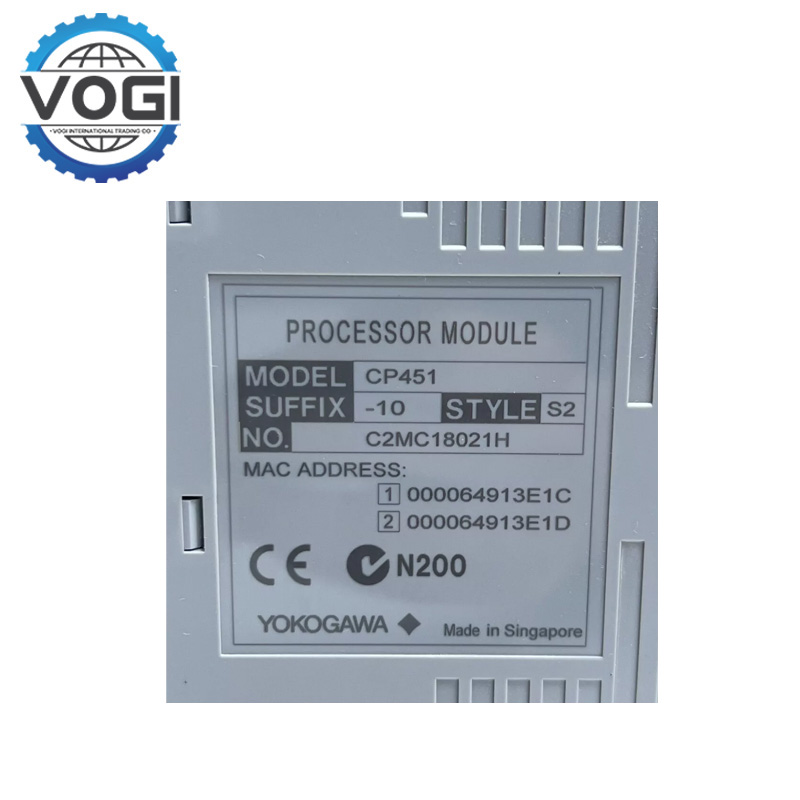

Yokogawa CP451-10 Processor module

Channels: 16 - channel digital input and output.

Signal Type: On/Off, High/Low.

Diagnosis Function: Channel fault diagnosis, module fault diagnosis.

Indicator: Module status indicator, channel status indicator.

Power Supply:

Input Voltage: 24V DC.

Power Consumption: 10W.

Operating Environment:

Operating Temperature: 0℃ - 60℃.

Storage Temperature: - 40℃ - 85℃.

Relative Humidity: 5% - 95% (non - condensing).

Multi-Protocol Control: Yokogawa CP451-10 supports Modbus TCP/RTU, OPC UA, and Yokogawa Vnet/IP (optional) for seamless integration with SCADA/DCS systems.

High-Speed Processing: 32-bit RISC processor (500 MHz) enables real-time control for batch processes, PID loops, and logic operations.

Flexible I/O Configuration: 16 analog inputs (4–20 mA, TC/RTD) + 24 digital inputs (24 V DC), 8 analog outputs, and 16 digital outputs (relay/transistor)..

Diagnostics and Alarms: Yokogawa CP451-10 has built-in self-diagnostics and configurable alarms for system health monitoring.

Compact Design: Space-saving dimensions for control panel or DIN rail mounting.

Industrial Durability:  Yokogawa CP451-10 operates in -10°C to +60°C with IP20 protection for indoor harsh environments.

Energy Efficiency: Low power consumption (<15 W) with 24 V DC loop-powered operation.

Industrial Process Control:  Yokogawa CP451-10 can integrates with CENTUM VP Distributed Control Systems (DCS) to manage real-time process control in oil refineries, chemical plants, and power generation facilities. It handles data acquisition, control logic execution, and communication with field devices like sensors and actuators.

Redundant Control Systems: Supports dual-redundant configurations for mission-critical applications, such as nuclear power plants or hazardous chemical processing, ensuring uninterrupted operation even during hardware failures.

Manufacturing Automation:Manages 32-channel digital outputs for controlling machinery, robotic arms, and production line equipment in automotive or semiconductor manufacturing plants. Its high-speed data refresh (10 ms cycle) ensures precision in assembly and quality control.

Oil and Gas Pipeline Monitoring: Monitors pressure transmitters and flow meters in oil and gas pipelines to predict equipment failures and leaks in remote pipeline In harsh environments.

Water Treatment and Environmental Monitoring: Yokogawa CP451-10 manages pumps, valves, and detectors in wastewater control systems, monitor real-time data to comply with environmental requirements.
